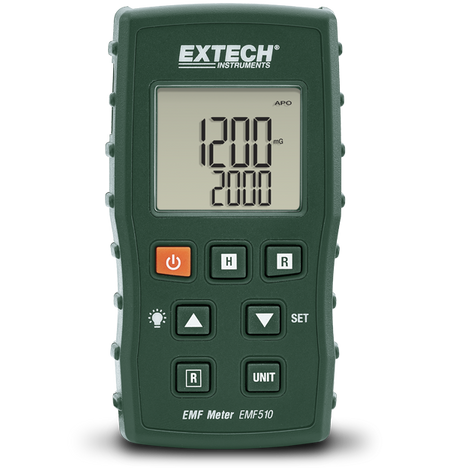

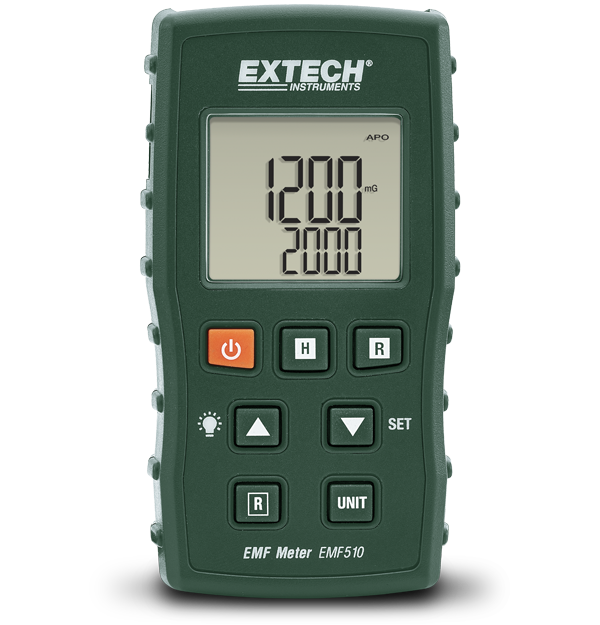

EXTECH EMF TESTER (EMF510)

Out of stock
SKU: EMF510
Regular price 600.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links


The EXTECH EMF510 is a specialized meter designed to measure electromagnetic fields (EMF) and extremely low frequency (ELF) levels. It is particularly useful for monitoring environments around power lines, electrical appliances, and other sources of electromagnetic radiation.

Features
  • Measurement Ranges: The EMF510 can measure electromagnetic fields in two ranges:
    • 200.0 mG (milli-Gauss)
    • 2000 mG
  • Sensitivity: It is sensitive to frequencies from 30 to 300 Hz, making it suitable for various applications.
  • Display: The device features a large backlit LCD for easy reading in low-light conditions.
  • Compact Design: Ergonomically designed with a wrist strap for ease of use.
  • Data Logging: Includes Min/Max function to track the highest and lowest readings.
  • Power Supply: Operates on three AAA batteries, ensuring portability.
Specifications
Specification Details
Model No EMF510
Measurement Units Gauss (mG), Tesla (µT)
Measurement Range 200.0/2000 mG, 20.00/200.0 µT
Basic Accuracy ±(5% of reading + 3 digits) @ 50/60Hz
Max Resolution 0.1/1 mG, 0.01/0.1 µT
Frequency Bandwidth 30 to 300 Hz
Dimensions 4.2 × 2.3 × 1" (107 × 58 × 25 mm)
Weight 5.6 oz (160 g)
Warranty 2 years
