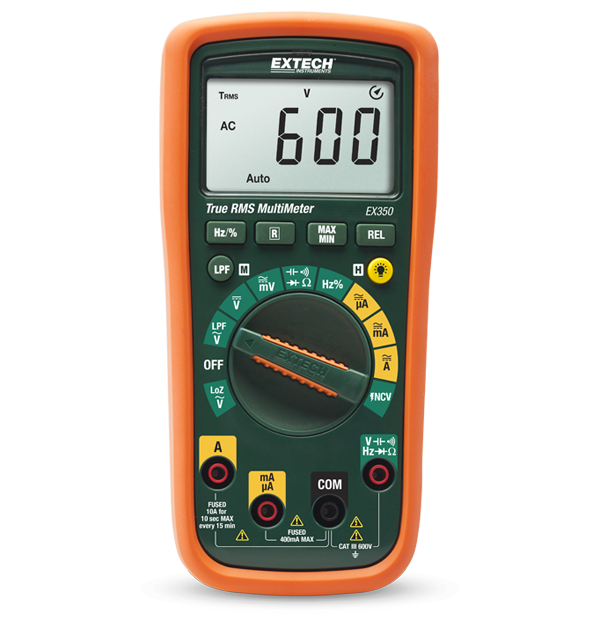

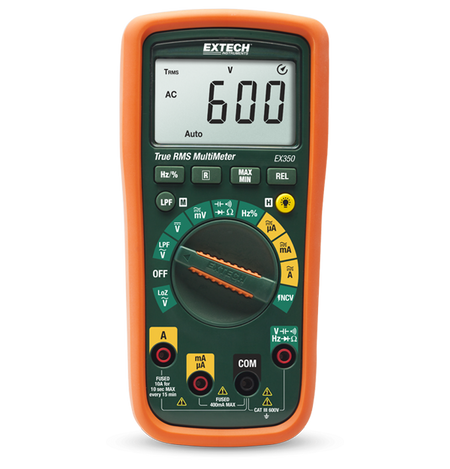

Extech EX350 11 Function True RMS Multimeter + NCV
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The EX350 is a professional DMM loaded with advanced features and functions. Low Impedance (LoZ) mode eliminates false readings caused by ghost voltages. Low Pass Filter (LPF)attenuates high frequencies to reduce noise for accurate readings. True RMS provides accurate readings when measuring distorted or noisy waveforms. Built-in Non-Contact AC Voltage Detector quickly checks for the presence of AC Voltage before testing. Features a 4000 count LCD display, data hold, min-max, relative mode, capacitance zero, auto power off, continuity and diode test. This meter will measure AC/DC voltage to 600 V and AC/DC current to 10 amps. Complete with test leads, manual and two AA batteries.
Features
• True RMS for accurate AC measurements
• 0.5% basic accuracy
• LoZ prevents false readings caused by ghost voltages
• Low Pass Filter (LPF) for accurate measurement of
variable frequency drive signals
• Built-in Non-contact AC Voltage Detector (NCV)
with LED indicator
• Data Hold freezes the reading on the display
• Min/Max/Max-Min captures highest and lowest
readings and the difference between them
• Relative Mode for Capacitance Zero and offset
adjustment
• Continuity and Diode Test
• Auto Power Off conserves battery life
Specifications
| Specification | Value |
|---|---|
| AC Current | 0.1 µA to 10.00 A |
| AC Voltage | 0.01 mV to 600 V |
| Capacitance | 1 pF to 60.00 mF |
| Continuity | Audible |
| DC Current | 0.1 µA to 10.00 A |
| DC Voltage | 0.01 mV to 600 V |
| DC Voltage Basic Accuracy | ±0.5% |
| Diode Test | 3.2 V |
| Duty Cycle | 0.1 to 99.9% |
| Frequency | 0.001 Hz to 10 MHz |
| Non-Contact Voltage (NCV) Detector | Yes |
| Resistance | 0.1 Ω to 40.00 MΩ |
| True RMS | Yes |
| Certifications | CE, UL |
| Dimensions | 6.7 × 3.2 × 1.9" (175 × 81 × 48.5 mm) |
| Display | 4000-count segment LCD |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CAT III - 600 V |
| Warranty | 3 years |
| Weight | 13.1 oz (370 g) |
