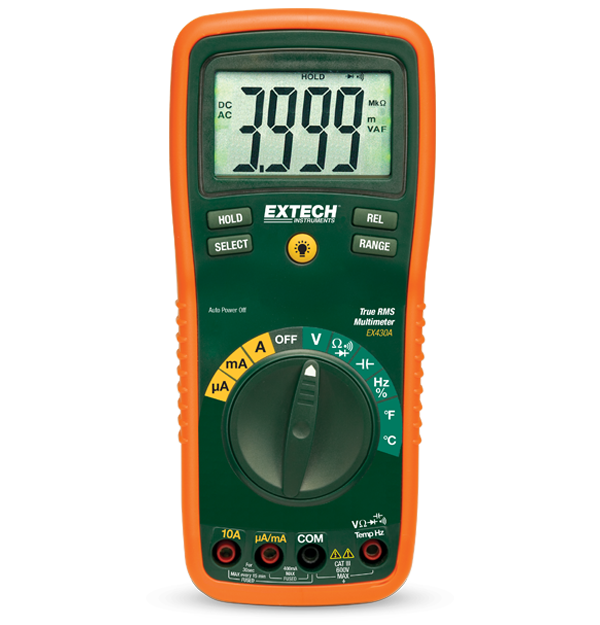

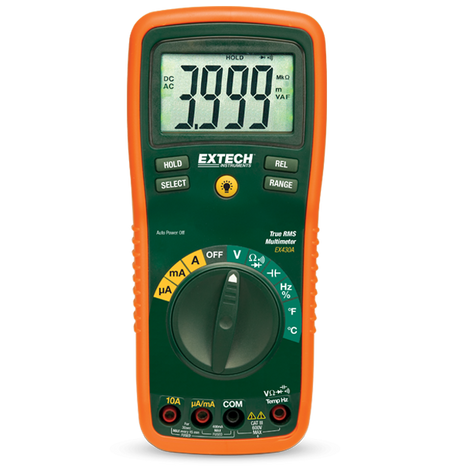

Extech EX430A 11 Function True RMS Professional MultiMeter
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Extech EX430A True RMS autoranging Multimeter (with K Type, capacitance, frequency, and duty cycle) is a professional-grade multimeter capable of performing a wide range of measurements. Functions include AC and DC voltage to 600 V, AC and DC current to 10 A, resistance to 40 MOhm, continuity, and diode test. It also includes a Type K thermometer function for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). Advanced functions include capacitance, frequency, and duty cycle. This meter comes complete with test leads, Type K temperature probe, 9 V battery, protective holster, adjustable tilt stand, and a velcro hanging strap.
Features
• Large backlit LCD display with easy-to-read 1" digits
• Type K thermometer built-in for temperature
measurements
• Low current capability: measure down to 0.1μA
• Input fuse protection and mis-connection warnings
• Complete with CAT III test leads, multi-position tilt
stand and velcro strap for hanging, protective holster
with test lead holder, bead wire temperature probe,
and 9V battery
Specifications
| Specification | Value |
|---|---|
| AC Current | 0.1 µA to 10 A |
| AC Voltage | 0.1 mV to 600 V |
| Capacitance | 0.01 nF to 100 µF |
| Continuity | Yes |
| DC Current | 0.1 µA to 10 A |
| DC Voltage | 0.1 mV to 600 V |
| DC Voltage Basic Accuracy | ±0.3% |
| Diode Test | Yes |
| Duty Cycle | 0.1% to 99.9% |
| Frequency | 0.001 Hz to 10 MHz |
| Resistance | 0.1 Ω to 40 MΩ |
| Temperature (Type K) Max Resolution | -4 to 1382 °F (-20 to 750 °C) |
| True RMS | Yes |
| Certifications | CE |
| Dimensions | 7.4 × 3.2 × 2" (187 × 81 × 50 mm) |
| Power | 1 × 9V battery |
| Safety Category | CAT III - 600 V |
| Warranty | 3 years |
| Weight | 0.75 lbs (342 g) |
