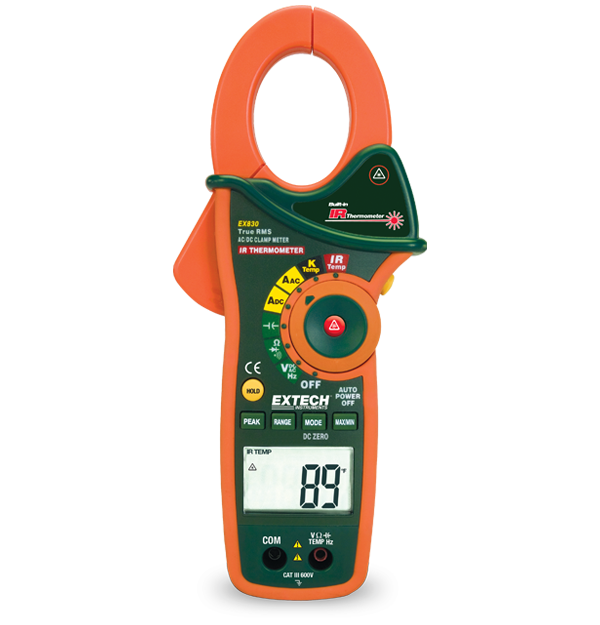

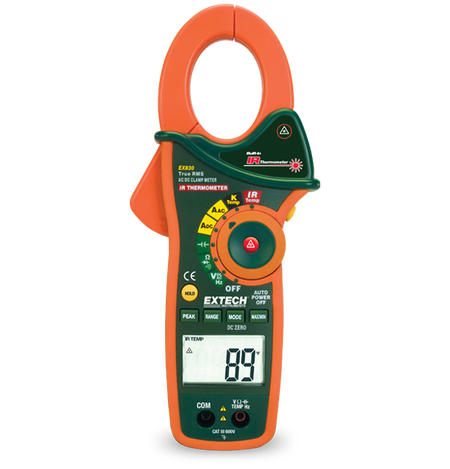

Extech EX830 1000A True RMS AC/DC Clamp Meter with IR Thermometer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The EX830 clamp meter features a unique, built-in, non-contact Infrared thermometer with laser pointer to monitor temperature and locate hot spots on motors and electrical devices. A large 4000 count LCD display with bright back lighting allows you to see the reading in dim light. The ergonomically designed double-molded housing offers a better grip for one-hand operation. The 1.7" (43 mm) diameter jaw opening is large enough for conductors up to 750MCM. In addition to AC/DC current, it measures AC/DC voltage, resistance, temperature, capacitance, and frequency. It features: diode test, audible continuity beeper, min/max, data hold, auto power off, and a fast peak hold that captures inrush currents and transients. Comes complete with test leads, 9V battery, type K bead wire temperature probe (-4 to 482°F/-20 to 250°C) and a belt holster.
Features
• Non-contact InfraRed Temperature measurements
with laser pointer
• Models with True RMS Current and Voltage
measurements
• Peak hold captures inrush currents and Transients
• MultiMeter functions include AC/DC Voltage,
Resistance, Capacitance, Frequency, Type K
Temperature (EX820/EX830), Diode, and Continuity
• 1.7" (43mm) jaw opening for conductors up to
750MCM or two 500MCM
• 4000 count backlit display
• Features include Data Hold and Min/Max
• Autoranging with manual range button
• Auto Power off
• Complete with test leads, 9V battery, general
purpose Type K probe (EX820/EX830), and case
Specifications
| Specification | Value |
|---|---|
| AC Current | 0.1 to 1000 A |
| AC Current Basic Accuracy | ±2.5% |
| AC Voltage | 0.1 mV to 600 V |
| AC Voltage Basic Accuracy | ±1.5% |
| Capacitance | 0.001 nF to 40,000 µF |
| Continuity | Yes |
| DC Current | 0.1 to 1000 A |
| DC Current Basic Accuracy | ±2.5% |
| DC Voltage | 0.1 mV to 600 V |
| DC Voltage Basic Accuracy | ±1.5% |
| Diode Test | Yes |
| Frequency | 0.001 kHz to 4 kHz |
| Frequency Basic Accuracy | ±1.5% |
| Inrush Current | Yes |
| Jaw Size | 1.7" (43 mm), conductors up to 750 MCM or two 500 MCM |
| Resistance | 0.1 to 40 MΩ |
| Temperature (IR) Basic Accuracy | -58 to 518°F (-50 to 270°C) |
| Temperature (IR) Max Resolution | ±2.0% of reading or ±4°F/±2°C |
| Temperature (Type K) Max Resolution | -4 to 1400°F (-20 to 760°C) |
| Temperature (Type N) | ±(3% of reading + 9°F/5°C) |
| True RMS | Yes |
| Certifications | CE, UL |
| Dimensions | 10.6 × 4.3 × 2" (270 × 110 × 50 mm) |
| Power | 1 × 9V battery |
| Safety Category | CAT III - 600 V |
| Warranty | 2 years |
| Weight | 13.6 oz (386 g) |
