EXTECH HEAVY DUTY DIFFERENTIAL PRESSURE MANOMETER
Regular price
1,000.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

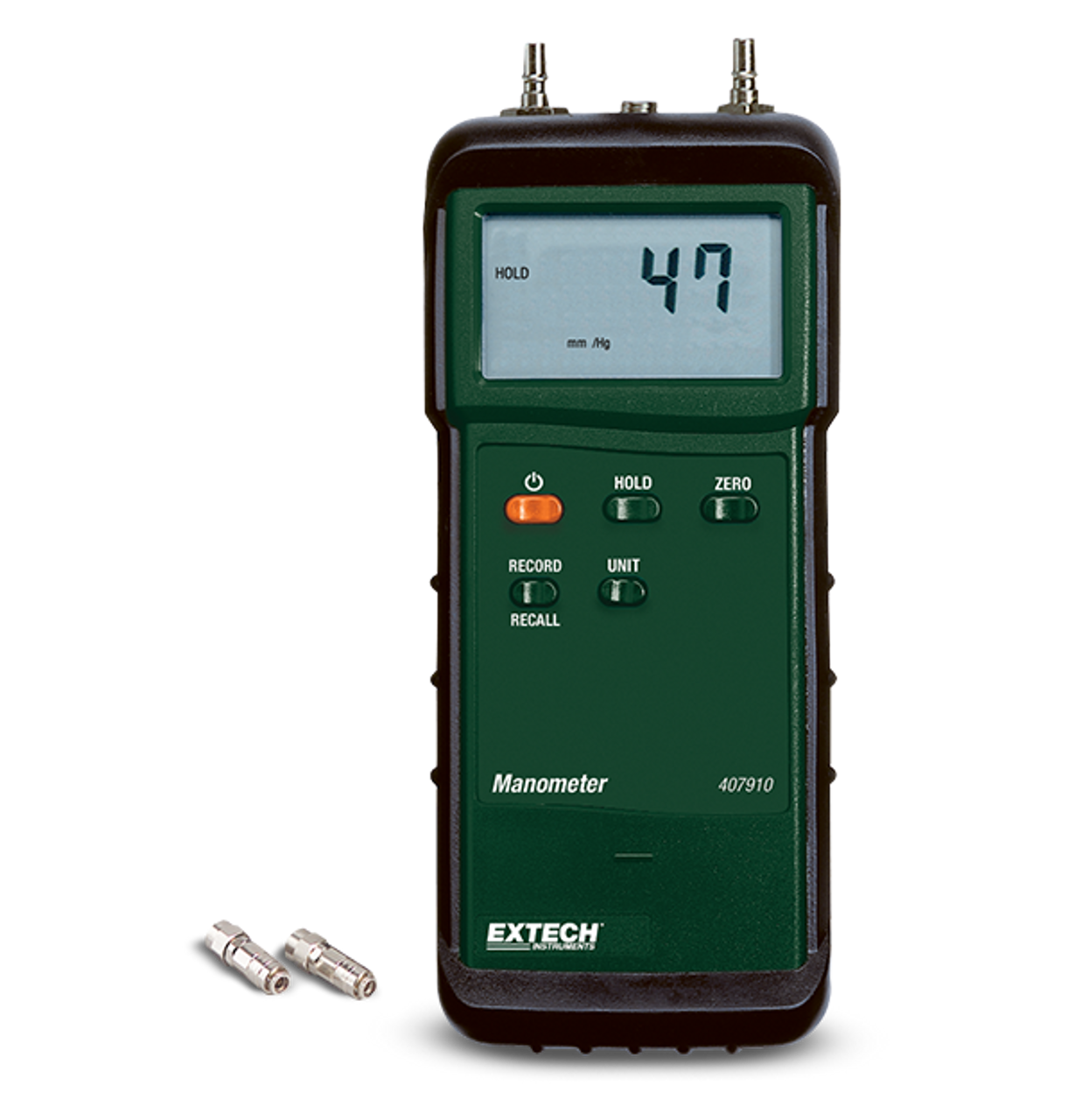

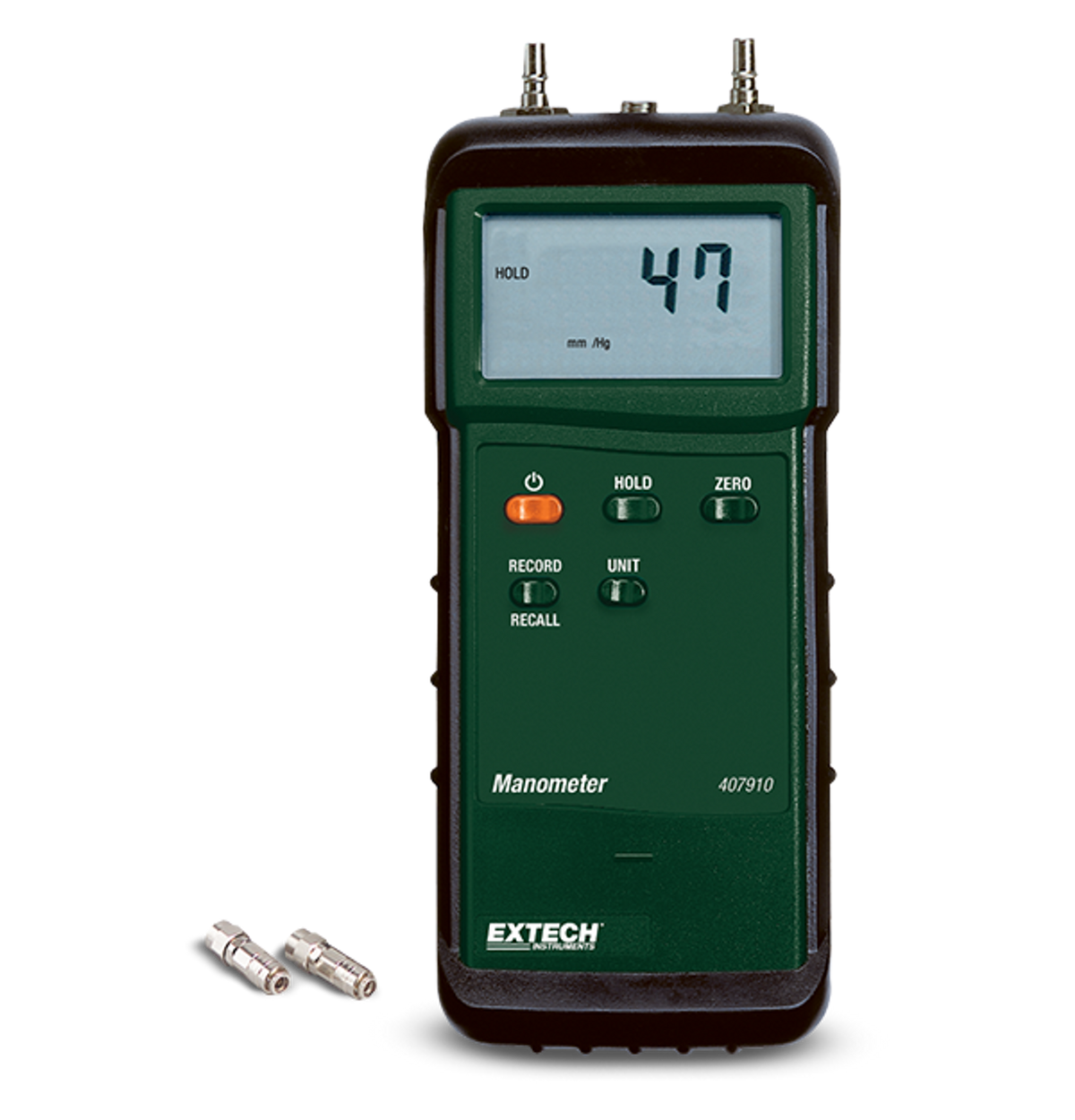

The EXTECH 407910 Heavy Duty Differential Pressure Manometer is a robust instrument designed for measuring differential pressure in various applications. It is capable of measuring pressures up to 29 psi and displays results in multiple units, making it versatile for different environments.
Features
- Measurement Range: Measures differential pressure up to 29 psi with a wide range of ±802 inches of water.
- Multiple Units of Measure: Displays pressure in 8 different units, including mbar, psi, kg/cm², mmHg, inHg, mH₂O, inH₂O, and atm.
- Dual Differential Inputs: Equipped with internal sensors for dual differential inputs, enhancing measurement accuracy.
- User-Friendly Functions: Includes features such as zero function for offset measurements, Min/Max recording, Data Hold, and Auto Power Off to conserve battery life.
- Included Accessories: Comes with two quick-disconnect fittings, a 9V battery, a protective holster with a stand, and a carrying case for portability.
Specifications
| Specification | Details |
|---|---|
| Model No | 407910 |
| Measurement Range | 0 to 29 psi (±802 inches of water) |
| Units of Measure | mbar, psi, kg/cm², mmHg, inHg, mH₂O, inH₂O, atm |
| Display | 0.6" (16mm) 2000 count LCD |
| Input Circuit | Differential inputs (P1 and P2) |
| Data Hold | Yes |
| Sensor | Built-in piezoelectric sensors |
| Auto Power Off | Yes (after approx. 10 minutes) |
| Power Supply | 9V alkaline battery |
| Dimensions | 7.1 x 2.8 x 1.3 inches (180 x 72 x 32 mm) |
| Weight | 0.76 lbs (345 g) |
| Warranty | 1 year |
