EXTECH HIGH TEMPERATURE TYPE K PIPE CLAMP PROBE (TP400)

Out of stock
SKU: tp400
Regular price 291.31 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

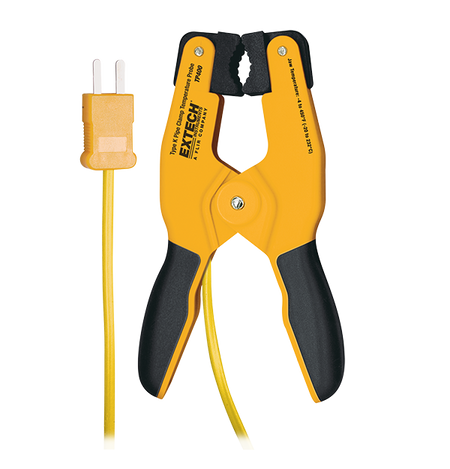

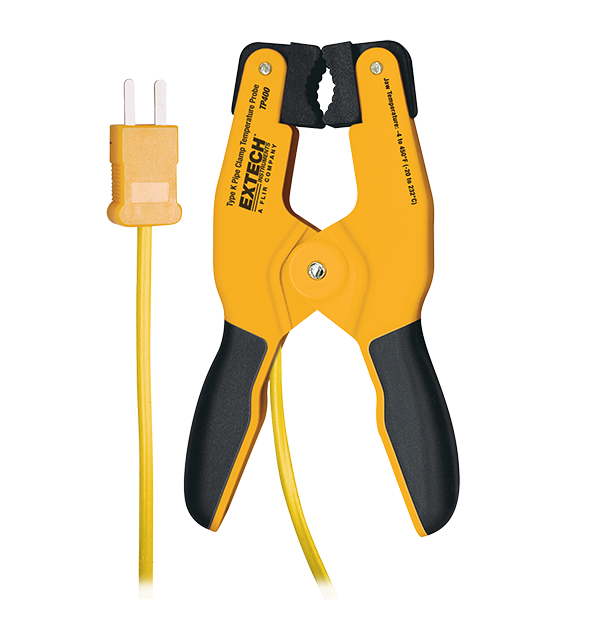

The EXTECH TP400 is a high-temperature Type K pipe clamp probe designed for hands-free temperature measurement of pipes. It is ideal for applications involving superheat and subcooling measurements in HVAC systems.

Features
  • Temperature Range: Measures temperatures from -20°C to 232°C (-4°F to 450°F).
  • Accuracy: Provides an accuracy of ±1.8°C (±3.6°F).
  • Pipe Size Compatibility: The spring-loaded jaw securely grips pipes with diameters ranging from 0.25 inches (6.35 mm) to 1.5 inches (38 mm).
  • Cable Length: Comes with a 36-inch (0.9 m) cable for extended reach.
  • Sensor Type: Utilizes a Type K curved thermocouple element for precise measurements.
Specifications
Specification Details
Model No TP400
Temperature Range -20°C to 232°C (-4°F to 450°F)
Accuracy ±1.8°C (±3.6°F)
Pipe Size 0.25" (6.35 mm) to 1.5" (38 mm)
Cable Length 36" (0.9 m)
Sensor Type Type K curved thermocouple
Downloads
