EXTECH INDUSTRIAL MULTIMETER
Regular price
750.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

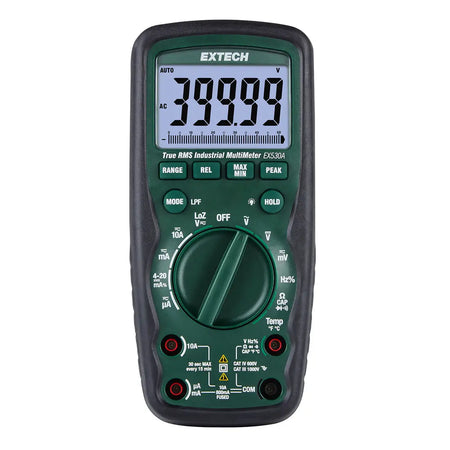

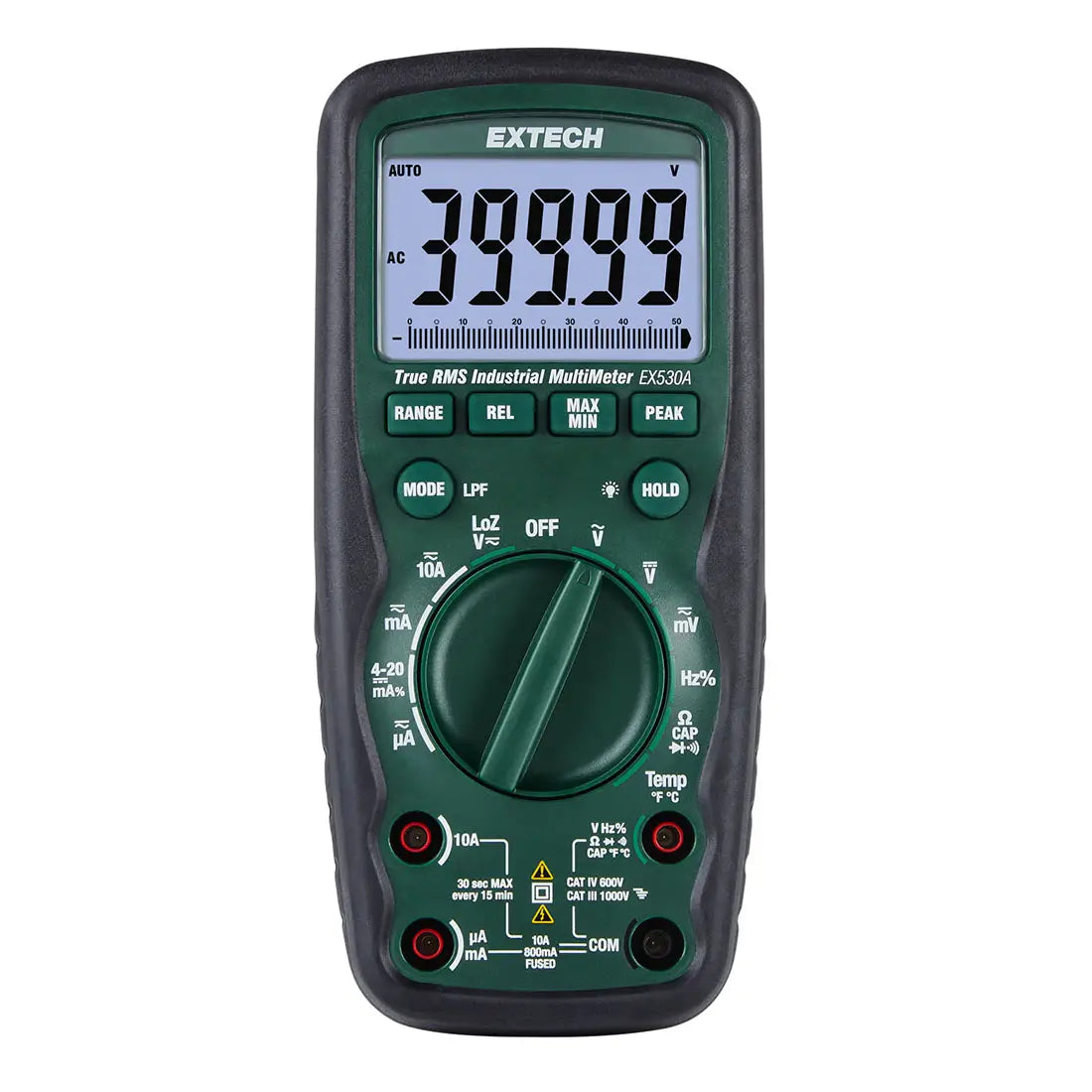

The EXTECH EX530A is a heavy-duty True RMS industrial multimeter designed for accurate measurements in various electrical applications. It features a robust design suitable for demanding environments, making it ideal for electricians, HVAC technicians, and industrial maintenance professionals.
Features
- True RMS Measurement: Provides accurate AC and DC voltage and current measurements, ensuring reliable readings even on non-sine waveforms.
- Wide Measurement Range: Measures AC/DC voltage up to 1000V and AC/DC current up to 10A.
- Multiple Functions: Includes capabilities for measuring resistance, capacitance, frequency, duty cycle, temperature, and diode/continuity testing.
- Large Display: Features a 50,000 count backlit LCD display with a bar graph for easy reading.
- Durable Design: IP67 waterproof and dustproof rating, along with a double-molded housing for enhanced protection.
- Safety Features: CAT IV 600V safety rating and 1000V input protection on all functions.
Specifications
| Specification | Details |
|---|---|
| Model No | EX530A |
| AC Voltage Range | 0.01 mV to 1000V |
| DC Voltage Range | 0.01 mV to 1000V |
| AC Current Range | 0.1 µA to 10A |
| DC Current Range | 0.1 µA to 10A |
| Resistance Range | 0.1 ohms to 50 Mohms |
| Capacitance Range | 0.01 nF to 99.99 mF |
| Frequency Range | 0.001 Hz to 10 MHz |
| Temperature Range | -45°C to 760°C (-50°F to 1400°F) |
| Display | 50,000 count backlit LCD |
| Safety Rating | CAT IV 600V |
| Waterproof Rating | IP67 |
