Extech IR267 Mini IR Thermometer with Type-K Input
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

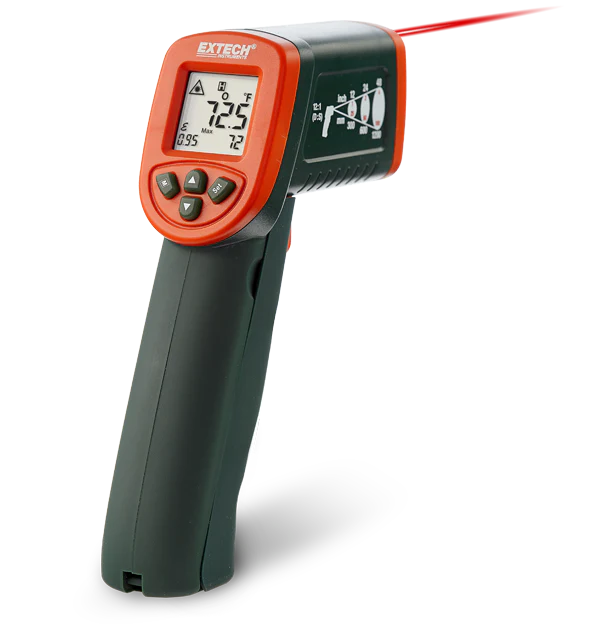

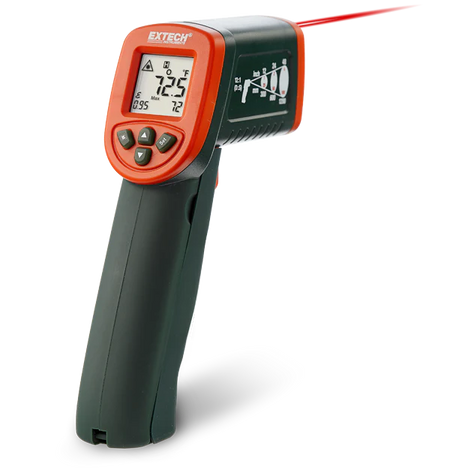

Compact non-contact InfraRed (IR) Thermometer measures up to 1112°F (600°C) with built-in laser pointer to identify target area and improve aim. Type K input allows for high temperature measurements up to 1832°F (1000°C). Builtin temperature sensor also measures Air Temperature. Adjustable emissivity feature allows for a higher accuracy when measuring temperature on various surfaces.
Features
Displays Ambient (Air) Temperature and noncontact InfraRed or Type K thermocouple readings
simultaneously
• 12:1 distance to target ratio
• Built-in laser pointer identifies target area
• Adjustable emissivity for better accuracy on
variety of surfaces
• Programmable high/low alarm alerts user visually and
audibly when temperature exceeds set limits (audible
alarm can be muted)
• MAX/MIN/ AVG/DIF function displays maximum,
minimum, average, and MAX minus MIN values
• Automatic Data Hold when trigger released
• Bright white backlighting illuminates display for
taking measurements at night or in areas with
low background light levels
• Auto power off approx 10 seconds after
trigger is released
• Complete with 9V battery and general purpose
Type K bead wire probe
Specifications
| Specification | Value |
|---|---|
| Distance to Target Ratio | 12:1 |
| Emissivity | 0.05 to 1.00, adjustable |
| Targeting | Single laser |
| Temperature (Air) | -4 to 158 °F (-20 to 70 °C) |
| Temperature (Air) Basic Accuracy | ±2% of reading or ±4 °F/2 °C |
| Temperature (Air) Max Resolution | 0.1 °F/°C |
| Temperature (Contact) | -58 to 1832 °F (-50 to 1000 °C) |
| Temperature (Contact) Basic Accuracy | ±2% of reading or ±4 °F/2 °C |
| Temperature (Contact) Max Resolution | 0.1 °F/°C |
| Temperature (IR) Basic Accuracy | -58 to 1112 °F (-50 to 600 °C) |
| Temperature (IR) Max Resolution | ±2% of reading or ±4 °F/2 °C |
| Temperature (RTD) | 0.1 °F/°C |
| Certifications | CE |
| Dimensions | 6.0 × 4.7 × 1.7" (153 × 120 × 42 mm) |
| Power | 1 × 9V battery |
| Warranty | 3 years |
| Weight | 5.1 oz (145 g) |
