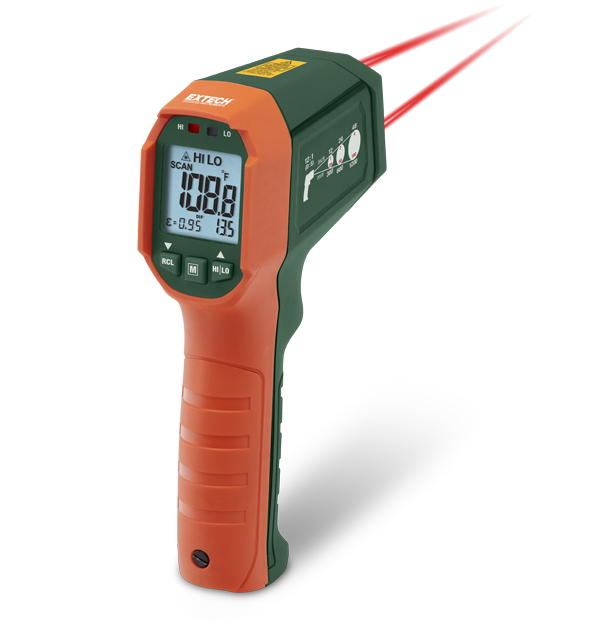

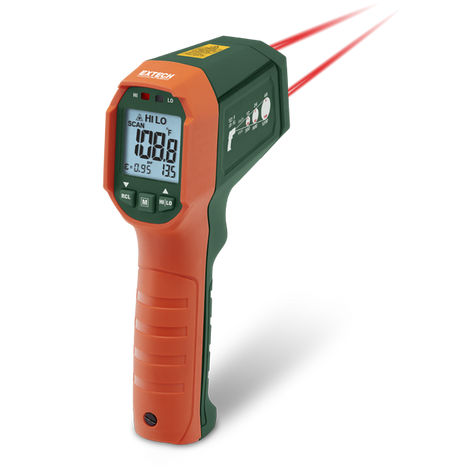

Rugged design with Waterproof (IP65) and 9.8ft (3m) drop-proof protection, Extech IR320 provides fast and accurate temperature measurements up to 1202°F (650°C). Its dual guided laser shows the target area between the two points at a 12:1 distance to target ratio. It has programmable High and Low Alarms with Red (HI) and Blue (LOW) visual LED alert. The Lock function allows for continuous measurement.
Features
Measure non-contact temperature up to 1202°F/650°C
• High basic accuracy with adjustable emissivity
• 12:1 distance to spot (target) ratio
• Dual laser pointer identifies target area between the
two points (~1"/25 mm diameter of measured area)
• Programmable alarm with visual alert — LCD displays
LO with Blue LED flashing when reading falls below
Low alarm set point; LCD displays HI with Red LED
flashing when reading exceeds High alarm set point
• Automatic Data Hold when trigger is released
• MAX/MIN/AVG/DIF functions
• Waterproof (IP65 rating) with 3 m drop-proof protection
• Bright backlighting illuminates display for
taking measurements at night or in areas with
low background light levels
• Lock function for continuous temperature
measurement without pressing the trigger
• Tripod mount for hands-free operation
(tripod not included)
• Auto Power Off
• Low battery indicator
• Complete with 9 V battery and soft case
Specifications
| Specification | Value |
|---|---|
| Distance to Target Ratio | 12:1 |
| Emissivity | 0.10 to 1.00, adjustable |
| Targeting | Dual laser |
| Temperature (Air) Max Resolution | 0.1 °F/°C |
| Temperature (IR) Basic Accuracy | -4 to 1202 °F (-20 to 650 °C) |
| Temperature (IR) Max Resolution | ±(1% of reading + 2 °F/1 °C) |
| Certifications | CE |
| Dimensions | 7.4 × 4.6 × 2.2" (189 × 118 × 55 mm) |
| Power | 1 × 9V battery |
| Warranty | 3 years |
| Weight | 10.3 oz (292 g) |
