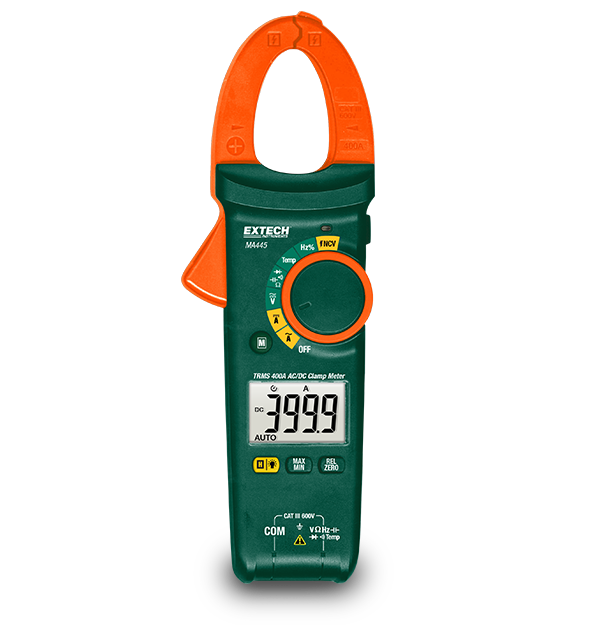

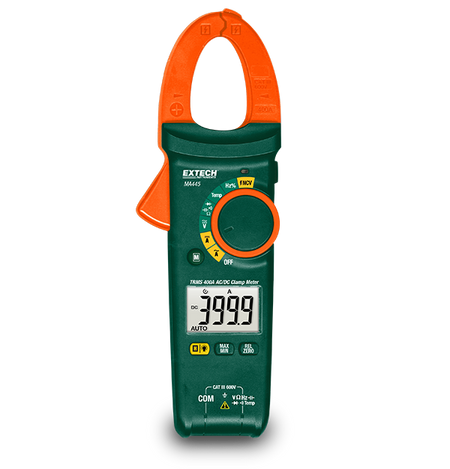

Extech MA445 400A True RMS AC/DC Clamp Meter + NCV
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Three models to choose from, with or without True RMS and AC or AC/DC Current functions. Choose True RMS model for accurate readings of non-sinusoidal waveforms, model with DC Current function for automotive applications, or model with Type K function when applications require Temperature measurements. The MA440 Series meters are fully loaded with multimeter functions and built-in non-contact voltage (NCV) detector to meet your application needs!
Features
• 1.2" (30mm) jaw size fit conductors up to 500MCM
• Built-in Non-Contact Voltage (NCV) detector
• MultiMeter functions include Resistance,
Capacitance and Frequency
• Relative Mode for Capacitance
• Data Hold freezes reading on display
• Auto Power Off with disable and Low Battery indication
• Large backlit LCD display
• Complete with test leads, three AAA batteries, and
pouch; MA443 and MA445 also includes a general
purpose Type K Temperature probe*
Specifications
| Specification | Value |
|---|---|
| AC Current | 400.0 A |
| AC Current Basic Accuracy | ±2.5% |
| AC Current Max Resolution | 10 mA |
| AC Voltage | 600 V |
| AC Voltage Basic Accuracy | ±1.2% |
| AC Voltage Max Resolution | 1 mV |
| Capacitance | 40 mF |
| Capacitance Max Resolution | 0.01 nF |
| Continuity | Yes |
| DC Current | 400.0 A |
| DC Current Basic Accuracy | ±2.0% |
| DC Current Max Resolution | 10 mA |
| DC Voltage | 600 V |
| DC Voltage Basic Accuracy | ±0.8% |
| DC Voltage Max Resolution | 0.1 mV |
| Diode Test | Yes |
| Duty Cycle | Yes |
| Frequency | 1 MHz |
| Frequency Max Resolution | 0.01 Hz |
| Jaw Size | 1.2" (30 mm), conductors up to 500 MCM |
| Non-Contact Voltage (NCV) Detector | 100 to 600 VAC |
| Resistance | 40 MΩ |
| Resistance Max Resolution | 0.1 Ω |
| Temperature (Type K) Max Resolution | -40° to 1832°F (-40° to 1000°C) |
| Temperature (Type N) Basic Accuracy | 1°F/°C |
| True RMS | Yes |
| Certifications | CE, ETL |
| Dimensions | 9 × 3 × 1.6" (228 × 77 × 41 mm) |
| Power | 3 × AAA (1.5 V) batteries |
| Safety Category | CAT III - 600 V |
| Warranty | 2 years |
| Weight | 9.3 oz (265 g) |
