EXTECH Magnetic Field Meter (MF100)
Regular price
1,600.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

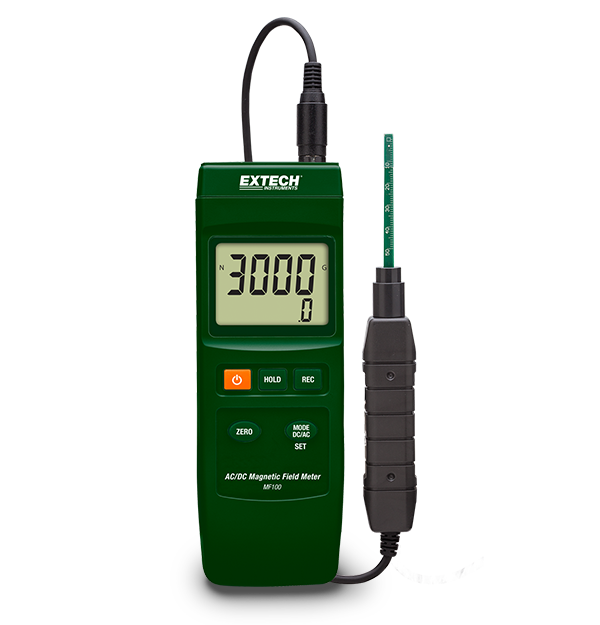

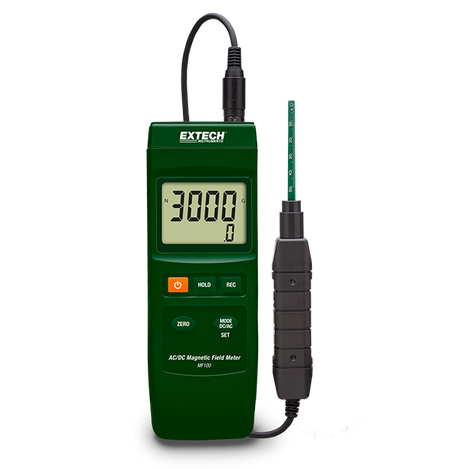

The EXTECH MF100 is an AC/DC Magnetic Field Meter designed to measure both AC and DC magnetic fields. It features a uniaxial Hall effect sensor and provides accurate readings in Gauss and milliTesla.
Features
- Measures AC and DC magnetic fields.
- Automatic temperature compensation.
- Uniaxial magnetic probe sensor included.
- Protective cover and hard carrying case provided.
- Operates with a 9V battery.
Specifications
Specification | Details |
---|---|
Electromagnetic Field (Gauss) | AC: 1500.0G, 15,000G; DC: 3000.0G, 30,000G |
Basic Accuracy | AC: ±(5% of reading + 20 digits); DC: ±(5% of reading + 10 digits) |
Max Resolution | 0.1G, 1G |
Electromagnetic Field (Tesla) | AC: 150.00mT, 1500.0mT; DC: 300.00mT, 3000.0mT |
Frequency Bandwidth | 50Hz/60Hz |
Number of Axes | Uniaxial |
Dimensions | 7.8 × 2.7 × 1.2 inches (195 × 68 × 30mm) |
Weight | 9.5 oz (270g) |
Power | 1 × 9V battery |
Warranty | 2 years |
