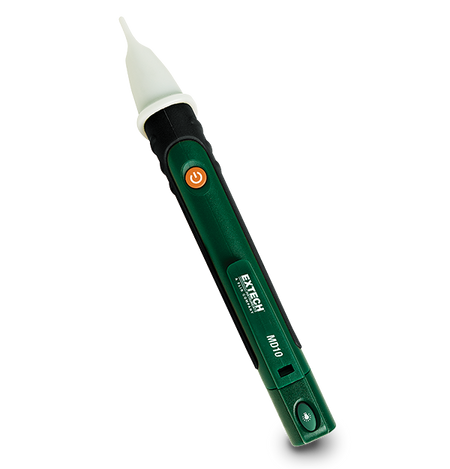

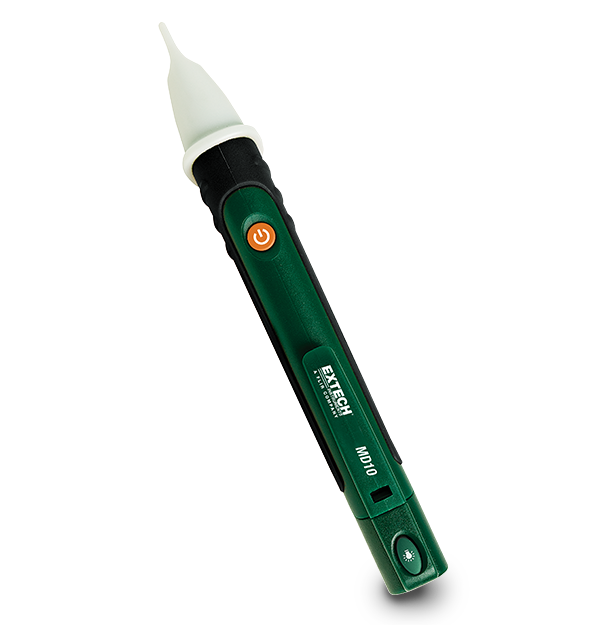

Extech MD10 Non-contact Magnet Detector with Built-In Flashlight
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The MD10 is a non-contact magnet detector with built in flashlight. A Blue LED lights up indicating the presence of a magnetic field including AC, DC and permanent magnets without contact. Applications include, testing audio speakers, Troubleshoot solenoid valves in pneumatic and hydraulic control equipment, testing relays with coils and electrically controlled solenoid valves in vehicles and machinery. Complete with two AAA batteries.
Features
• Detects the presence of magnetic field without contact
(AC, DC, and permanent magnets)
• Blue LED lights up for visual magnetic field indication
• Magnetic field detection range: 63H, 98H, 401H, 810H
• Low battery indicator
• Built-in bright flashlight with On/Off button
• Compact size with pocket clip
• Dimensions: 6.25 x 0.8x 1" (159 x 21 x 25mm);
Weight: 1.7oz (48g)
• Complete with two AAA batteries
Specifications
| Specification | Value |
|---|---|
| Magnetic Field | 63, 98, 401, 810 (Henry units) |
| Certifications | CE |
| Dimensions | 6.25 × 0.8 × 1" (159 × 21 × 25 mm) |
| Power | 2 x AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 1.7 oz (48 g) |
