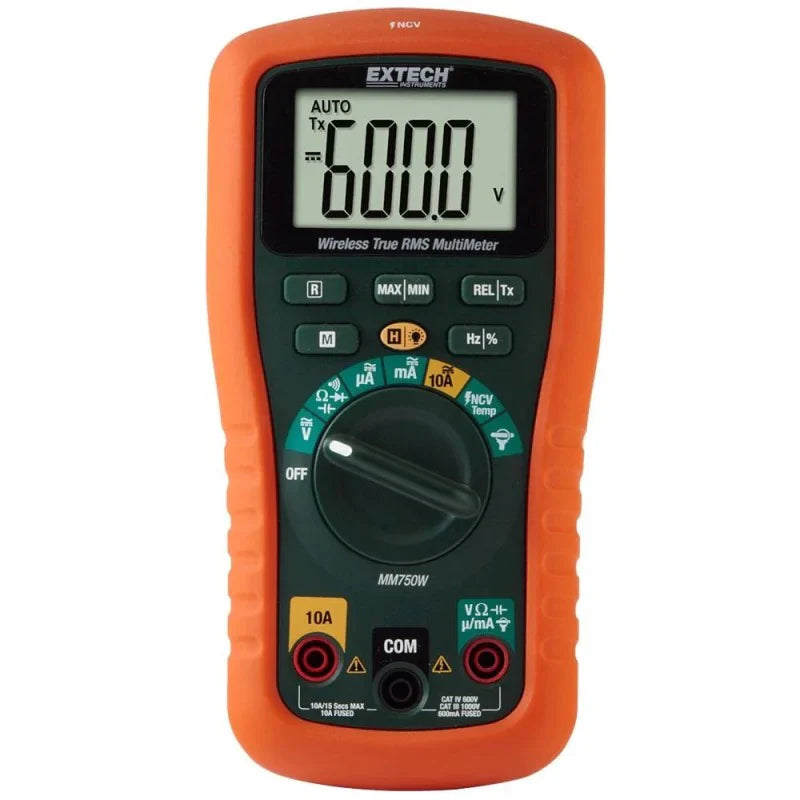

Extech MM750W Wireless Datalogging CAT IV True RMS Multimeter
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The MG310 is a Compact Insulation Resistance Tester which allows quick and easy testing/troubleshooting of motors, transducers, and other industrial appliances. Wide range measurement up to 1000V with Insulation Resistance to 5.5GΩ. Includes an easy snap on protective hard cover and soft pouch to conveniently transport your meter and accessories to the next job site or to safely store away. Featuring Low Resistance measurement with Zero function, Continuity beeper, Large 2000 count dual display with backlight, High voltage and overload indication, Auto-discharge and voltage output warning functions as well as Low battery indication. Complete with test leads, alligator clips, 6 x AA batteries, hard cover, and soft carrying case.
Features
●Wireless DMM function with Bluetooth® Datalogging Module transmits readings to iOS® and Android™ devices for remote viewing using the free app
● True RMS for accurate AC measurements
● Type K Temperature function
● 6000 count backlit LCD screen
● ±0.6% basic DCV accuracy
● Built-in non-contact AC Voltage Detector (NCV)
● AC μA function is ideal for HVAC flame rod current measurement
● External clamp adapter input (1mV=1A; 600A AC/DC max)
● MIN/MAX/DIF captures the highest and lowest readings and the difference between them
● Relative Mode for Capacitance Zero and offset adjustment
● Data Hold freezes the reading on the display
● Auto Power Off with disabling and low battery indicator
Specifications
| Specification | Range | Max Resolution | Basic Accuracy |
|---|---|---|---|
| Non-Contact Voltage (NCV) | >100 VAC | ||
| AC Voltage | 0.1 mV to 1000 V | 0.1 mV | ±0.6% of rdg ±3 digits |
| DC Voltage | 0.1 mV to 1000 V | 0.1 mV | ±0.6% of rdg ±2 digits |
| AC Current | 0.1 µA to 10.00 A | 0.1 µA | ±0.15% of rdg ±5 digits |
| DC Current | 0.1 µA to 10.00 A | 0.1 µA | ±0.12% of rdg ±5 digits |
| AC µA Current | 0.1 µA to 6000 µA | 0.1 µA | ±0.15% of rdg ±5 digits |
| DC µA Current | 0.1 µA to 6000 µA | 0.1 µA | ±0.12% of rdg ±5 digits |
| Resistance | 0.1 Ω to 60.00 MΩ | 0.1 Ω | ±0.6% of rdg ±2 digits |
| Capacitance | 9.999 nF to 99.99 mF | 0.001 nF | ±5% of rdg ±5 digits |
| Frequency | 9.999 Hz to 55.00 MHz | 0.001 MHz | ±1.5% of rdg ±3 digits |
| Temperature (Type K) | -40 to 1832 °F (-40 to 1000 °C) | 1 ° | ±(2% + 2 °F) / ±(2% + 2 °C) |
| Duty Cycle | 0.1 to 99.9% | 0.1% | ±1.2% of rdg ±2 digits |
| Diode Test | 3.000 V | 0.001 V | ±10% of rdg ±5 digits |
| Continuity | Audible | ||
| Datalogging (with DAT12) | 15,360 data points | ||
| Dimensions/Weight | 7.4 x 3.8 x 2.2" (188 x 96 x 56 mm) / 14.6 oz (415 g) without battery |
