EXTECH Motor Rotation and 3-Phase Tester

Out of stock
SKU: 480403
Regular price 550.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

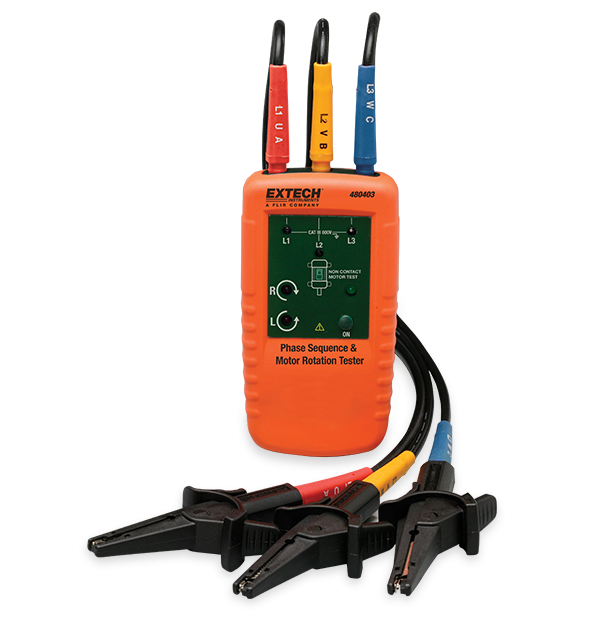

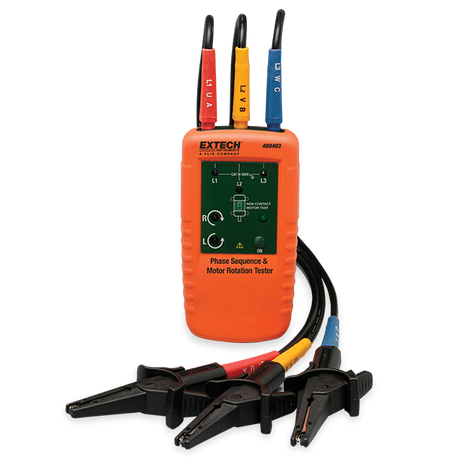

The EXTECH 480403 Motor Rotation and 3-Phase Tester is a specialized tool designed for testing the phase orientation of 3-phase power sources and determining the rotation direction of motors. This device is essential for ensuring that motors are wired correctly to prevent damage.

Features
  • Voltage Range: Tests AC voltages from 40 to 600 volts.
  • Frequency Range: Operates over a frequency range of 2 Hz to 400 Hz.
  • LED Indicators: Equipped with LEDs that indicate phase orientation (clockwise or counter-clockwise) and whether each phase is live.
  • Compact Design: Lightweight and portable, making it easy to use in various settings.
  • Included Accessories: Comes with a cable, three large color-coded alligator clips, a pouch case, and a 9V battery.
Specifications
Specification Details
Model 480403
AC Voltage Range 40 to 600V
Frequency Range 2 to 400Hz
Motor Rotation Yes
Phase Sequence Yes
Dimensions 5.1 x 2.7 x 1.25 inches
Weight 4.5 oz (130 g)
Power Supply 1 x 9V battery
Warranty 2 years
Downloads

EXTECH 480403 Datasheet
