EXTECH MULTI-TYPE CALIBRATOR THERMOMETER (PRC20)

Out of stock
SKU: PRC20
Regular price 1,989.40 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

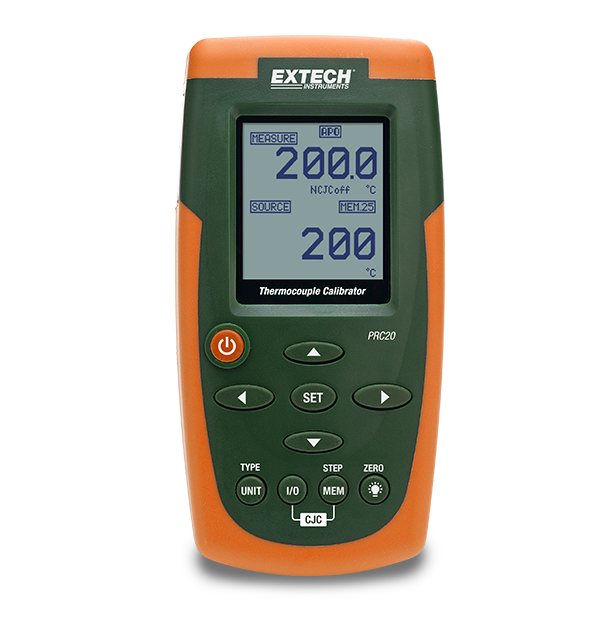

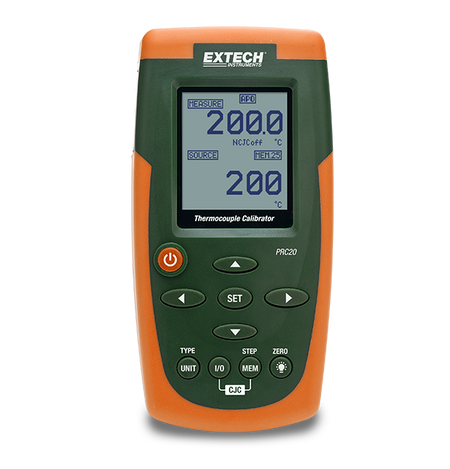

The EXTECH PRC20 is a versatile multi-type calibrator thermometer designed for accurate temperature measurements across various sensor types, including thermocouples and RTDs. This device is ideal for calibration applications in laboratories, industrial settings, and fieldwork.

Features
  • Multi-Type Compatibility: Supports various temperature sensors, including Type K, J, T, E, R, S, and N thermocouples, as well as 100Ω and 1000Ω RTDs.
  • Wide Temperature Range: Measures temperatures from -200°C to 1372°C (-328°F to 2501°F) depending on the sensor type used.
  • High Accuracy: Provides an accuracy of ±0.1% of reading plus 1°C for thermocouples and ±0.2°C for RTDs.
  • User-Friendly Interface: Features a large backlit LCD display for easy reading in various lighting conditions.
  • Data Hold Function: Allows users to freeze the current reading for easy reference.
  • Calibration Function: Includes a calibration function for ensuring measurement accuracy.
Specifications
Specification Details
Model No PRC20
Temperature Range -200°C to 1372°C (-328°F to 2501°F)
Accuracy ±0.1% of reading + 1°C (thermocouples); ±0.2°C (RTDs)
Display Large backlit LCD
Power Supply 9V battery
Dimensions Compact design
Weight Lightweight
