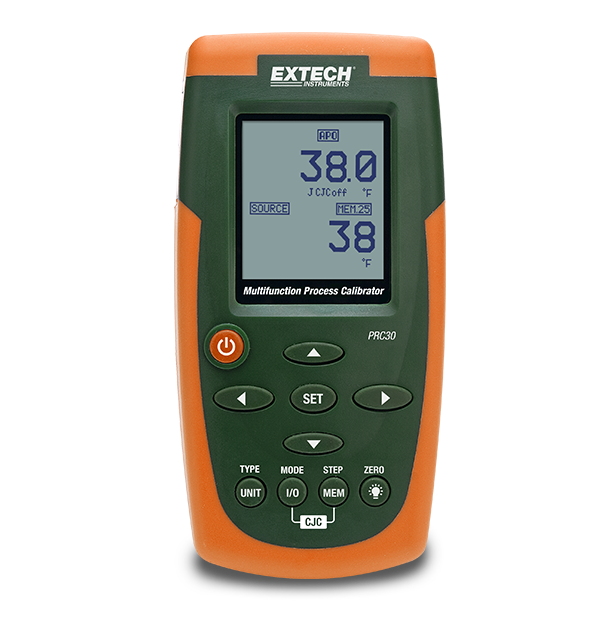

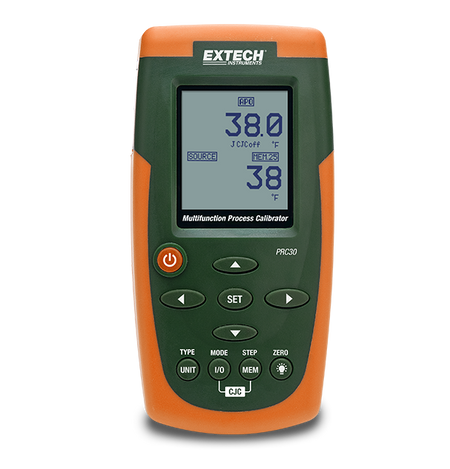

EXTECH Multifunction Process Calibrator (PRC30)

Out of stock
SKU: PRC30
Regular price 2,200.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links


The EXTECH PRC30 is a Multifunction Process Calibrator designed for precision sourcing and measurement of thermocouples, current, and voltage devices. It features a user-friendly interface and is equipped with a variety of accessories for versatile applications in both field and laboratory settings.

Features
  • Supports eight types of thermocouples (J, K, T, E, C, R, S, N).
  • Measures current (0 to 24 mA) and voltage (0 to 20 V DC).
  • Provides temperature output in Fahrenheit, Celsius, and millivolts.
  • 24V loop power source for 2-wire current loops.
  • Five user adjustable calibration presets.
  • Illuminated dot-matrix display for easy reading.
  • Durable housing for extended field use.
  • Includes test leads, alligator clips, and various calibration cables.
Specifications
Feature Specification
Current Measurement Range 0 to 24 mA
Voltage Measurement Range 0 to 2000 mV, 0 to 20 V
Thermocouple Types J, K, T, E, C, R, S, N
Temperature Range (Type J) -58 to 1832°F (-50 to 1000°C)
Temperature Range (Type K) -58 to 2498°F (-50 to 1370°C)
Temperature Range (Type T) -184 to 752°F (-120 to 400°C)
Temperature Range (Type E) -58 to 1382°F (-50 to 750°C)
Temperature Range (Type C, R, S) 32 to 3182°F (0 to 1750°C)
Temperature Range (Type N) -58 to 2372°F (-50 to 1300°C)
Power Supply 100-240V AC universal adapter
Battery Type 6 x AA batteries
Dimensions Compact and portable design
Downloads


EXTECH PRC30 Datasheet
