EXTECH Power Clamp Meter 1000A (380976-K)

Out of stock
SKU: 380976-K
Regular price 1,200.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

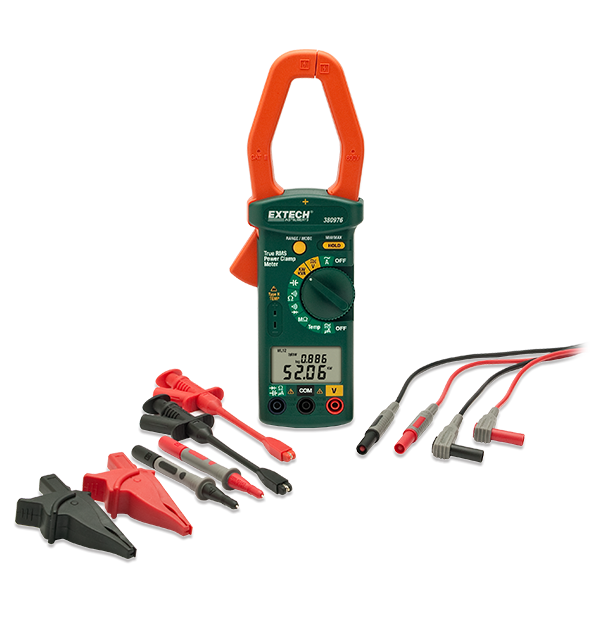

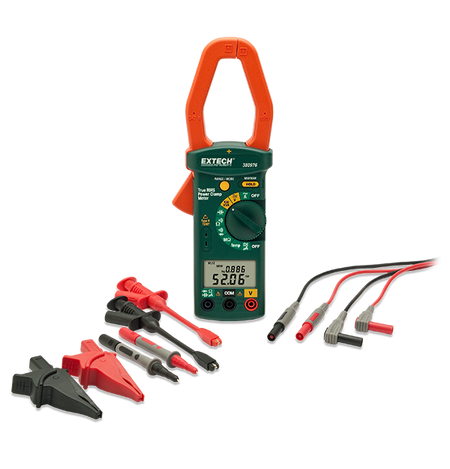

The EXTECH 380976-K is a versatile single-phase and three-phase power clamp meter capable of measuring up to 1000A. It is designed for professionals who need to assess electrical parameters in various applications, including industrial and commercial settings.

Features
  • Measurement Capabilities:
    • Measures 1/3-phase true power (kW), apparent power (kVA), reactive power (kVAR), horsepower (HP), power factor, and phase angle with lead/lag indicator.
  • Clamp Jaw Opening:
    • 1.6 inches (40mm) for easy access to conductors.
  • Display:
    • Large dual LCD display with a 9999 count for clear readings.
  • AC+DC µA Current Measurement:
    • 10nA resolution for flame rod tests.
  • Voltage Measurement:
    • Auto-detect AC/DC voltage with simultaneous frequency display.
  • Capacitance and Resistance Testing:
    • Capacitance measurement up to 7000µF and resistance testing up to 100MΩ.
  • Temperature Measurement:
    • Type K thermocouple with a range up to 1000°F (°C/°F switchable).
  • Included Accessories:
    • Comes with a test lead kit, general-purpose Type K thermocouple probe, carrying case, and a 9V battery.
Specifications
Specification Details
Model Number 380976-K
Current Measurement Range Up to 1000A
Voltage Measurement AC/DC
Capacitance Measurement Up to 7000µF
Resistance Measurement Up to 100MΩ
Temperature Range Up to 1000°F
Display Dual LCD (9999 count)
