EXTECH Precision Multimeter (MM560A)

Only 3 left
SKU: MM560A
900.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

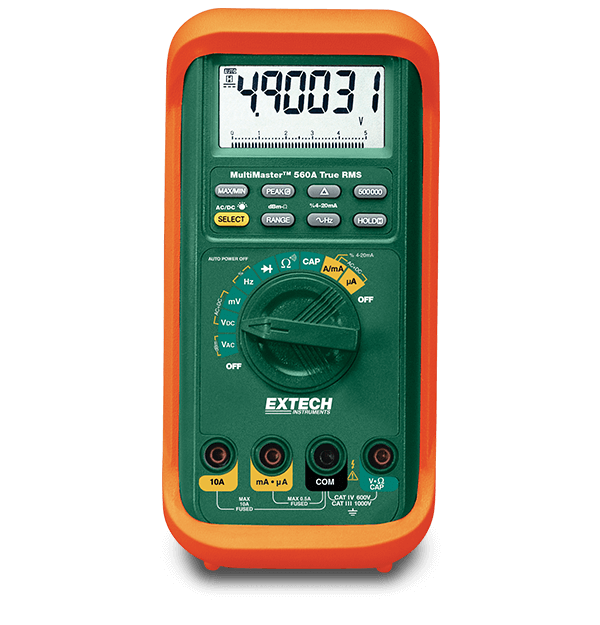

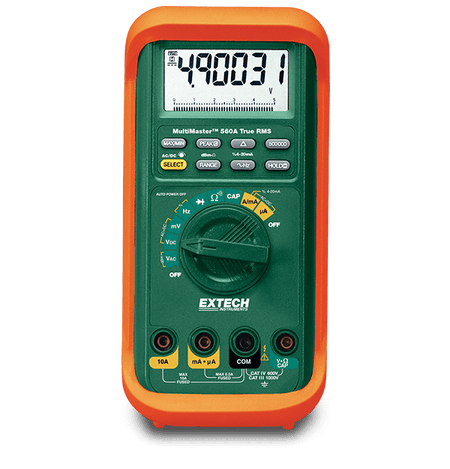

The EXTECH MM560A is a high-accuracy True RMS multimeter designed for a wide range of electrical measurements. It features a large LCD display and is suitable for both professional and industrial applications.

Features
  • Measurement Functions: Full range multimeter functions including AC/DC voltage, current, resistance, capacitance, frequency, duty cycle, and diode tests.
  • Display: 50,000 count (500,000 for DCV and Hz) backlit LCD with bargraph for easy reading.
  • Accuracy: Basic DC voltage accuracy of 0.03%.
  • True RMS Measurement: Special True RMS combination AC+DC function for measuring rectified AC voltage and current waveforms.
  • Max/Min Recording: Captures transient pulses with autoranging capabilities.
  • PC Communication: Optional Windows® compatible software and optically isolated cable for data logging.
Specifications
Specification Details
Model Number MM560A
Voltage Measurement Range Up to 1000V
Current Measurement Range Up to 10A
Resistance Measurement Range Up to 50MΩ
Capacitance Measurement Up to 9999µF
Frequency Measurement Up to 200kHz
Dimensions 7.32 x 3.42 x 1.39 inches
Weight 0.75 lb (340 g)
