EXTECH PROBE Heavy Duty Vibration Meter (407860-P)

Out of stock
SKU: 407860-P
Regular price 1,350.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

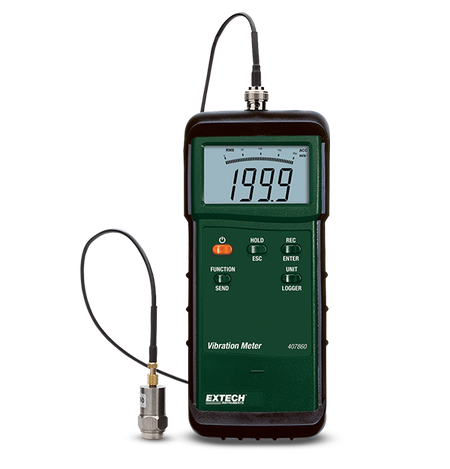

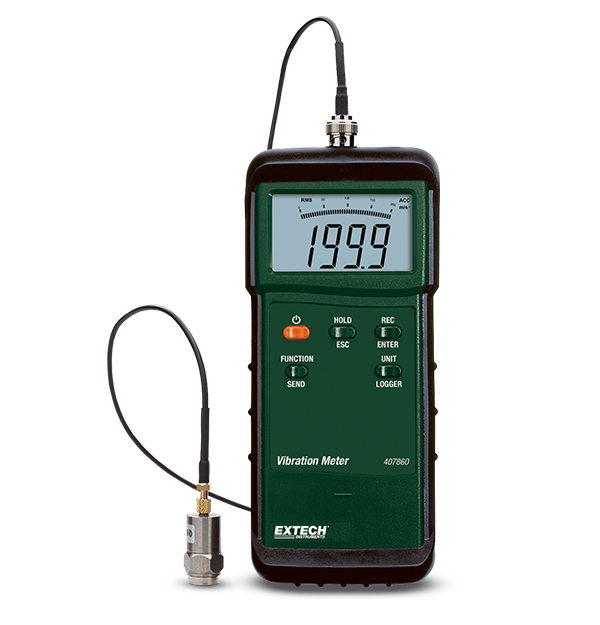

The EXTECH 407860-P Heavy Duty Vibration Meter is designed for measuring vibration levels in various industrial applications. It provides accurate readings of acceleration, velocity, and displacement, making it an essential tool for maintenance and diagnostics.

Features
  • Measurement Ranges:
    • Acceleration: Up to 200 m/s²
    • Velocity: Up to 200 mm/s
    • Displacement: Up to 2 mm
  • Accuracy: Basic accuracy of ±5% for all measurements.
  • Display: Large LCD for easy reading of measurements.
  • Remote Vibration Sensor: Comes with a magnetic or stud-mounted remote sensor with a 39-inch (1 m) cable.
  • Data Storage: Auto/manual store with recall of up to 500 readings.
  • Data Logging: Captured readings can be downloaded to a PC for further analysis using optional Windows-compatible software.
  • Complete Kit: Includes remote sensor, magnetic mount, 9V battery, protective rubber holster with stand, and hard carrying case.
Specifications
Specification Details
Model Number 407860-P
Acceleration Range 0 to 200 m/s²
Velocity Range 0 to 200 mm/s
Displacement Range 0 to 2 mm
Basic Accuracy ±5%
Dimensions 7.1 × 2.9 × 1.3 inches
Weight 0.87 lbs (395 g)
Power Supply 1 × 9V battery
Warranty 3 years
