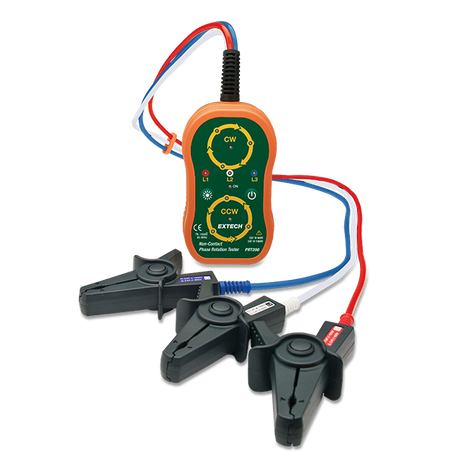

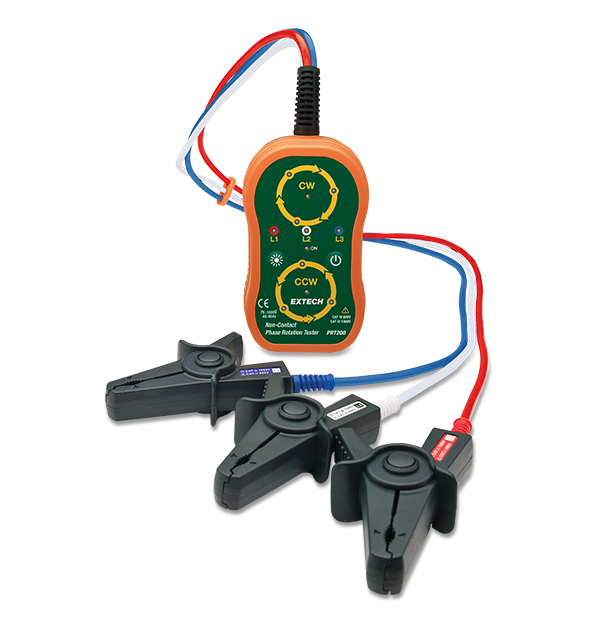

Extech PRT200 Non-Contact Phase Sequence Tester

The Extech PRT200 is a non-contact phase sequence tester with a 75 to 1000 VAC input voltage and 45 to 65 Hz frequency range. This tester features LEDs that indicate whether each phase is live and that phase's orientation; a beeper sounds intermittently when correct phase is detected and continuously if phase is reversed. An adjustable Hi/Lo LED brightness switch makes it easy to take measurements in dimly lit areas or sunlight, while the CAT IV 600 Volt safety rating plus fully-insulated, wide-jaw alligator clips mean it's appropriate for industrial applications. The PRT200 comes complete with a year warranty, three built-in 30 in. test leads with large color-coded alligator clips, 4 AA batteries, and a pouch case.

Features

• 75 to 1000VAC input voltage with 45 to 65Hz frequency range
• LEDs indicate phase orientation (clockwise or counter-clockwise)
and whether each phase is live
• Beeper sounds intermittently when correct phase is detected and
continuously if phase is reversed
• Durable housing with back cover magnet for attachment to an AC
distribution panel for easy measurement
• Adjustable Hi/Lo LED brightness switch for making measurements in
dimly lit areas or sunlight
• Fully insulated alligator clips with wide jaws
• Low battery warning
• CAT IV-600V safety rating
• Dimensions: 4.7 x 2.7 x 1.5" (118 x 69 x 38mm);
Weight: 13oz (370g)
• Complete with three built-in 30" test leads with large color-coded
alligator clips, four AA batteries, and pouch case

Specifications

Downloads

Extech PRT200 Datasheet
