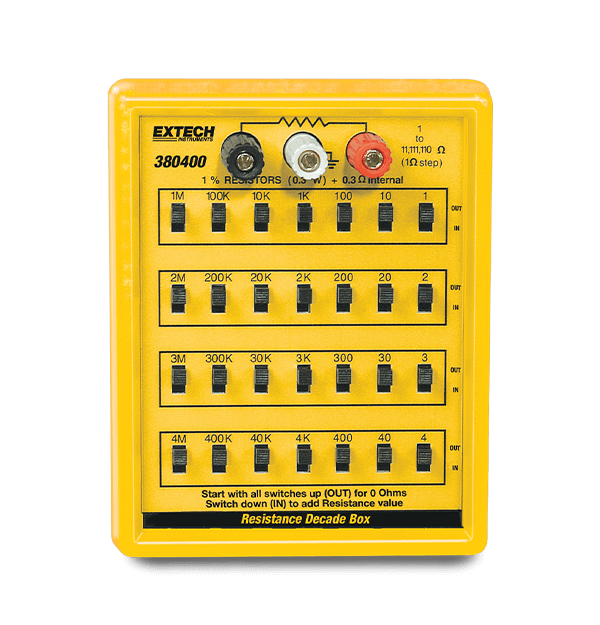

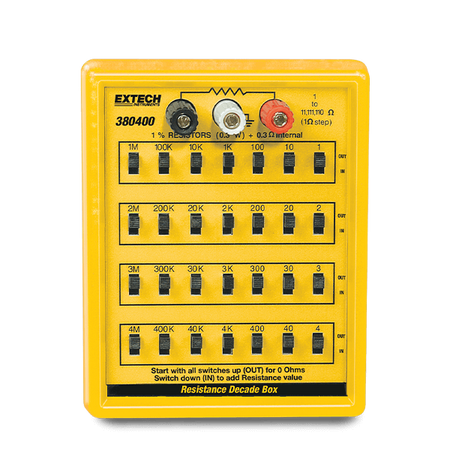

EXTECH Resistance Decade Box (380400)

Out of stock
SKU: 380400
Regular price 450.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links


The EXTECH 380400 Resistance Decade Box is a versatile tool designed for product design testing and calibration. It allows users to easily substitute standard resistor values in a circuit and helps identify optimal resistance values for circuit operations.

Features
  • Wide Resistance Range: Offers resistance values from 1 to 11,111,110 ohms in 1-ohm steps.
  • Internal Resistance: Features an internal resistance of 0.3 ohms.
  • Connector Type: Equipped with three binding posts for easy connections.
  • Power Rating: Designed to handle 0.3W resistors.
  • Compact Size: Dimensions are 5.79 × 4.61 × 1.3 inches (147 × 117 × 33 mm).
  • Lightweight: Weighs only 0.69 lbs (312 g).
  • Warranty: Comes with a 2-year warranty.
Specifications
Specification Details
Model Number 380400
Resistance Range 1 to 11,111,110 Ω in 1 Ω steps
Internal Resistance 0.3 Ω
Power Rating 0.3 W
Dimensions 5.79 × 4.61 × 1.3 inches
Weight 0.69 lbs (312 g)
Warranty 2 years
