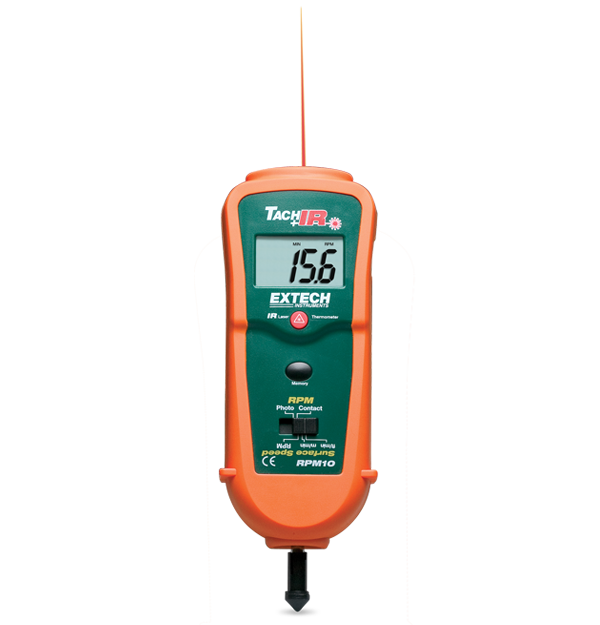

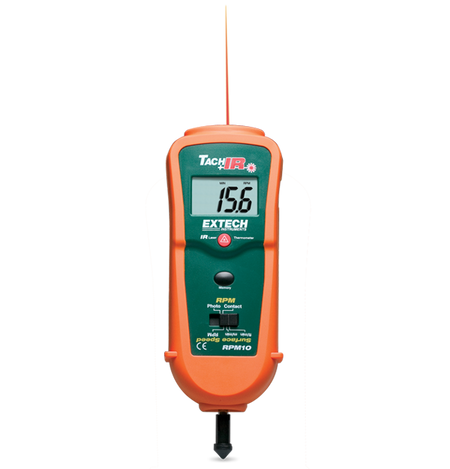

Extech RPM10 Photo/Contact Tachometer with built-in InfraRed Thermometer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The RPM10 is a combination tachometer which provides both contact and non-contact RPM measurements, making this device useful in virtually all applications. The RPM10 also features a built-in IR thermometer with laser pointer for measuring surface temperature from -4 to 600 degrees F (-20 to 315 degrees C), making it ideal for checking the operating temperature of motors, bearings and machinery. Complete with wheels for linear surface speed (0.2 to 6560 ft. /minute; 0.05 to 1999.9 m/minute) or RPM measurements, 4 AA batteries, 23 in. (0.6 m) reflective tape, carrying case, and user manual.
Features
• Built-in IR thermometer with laser measures remote
surface temperature on motors and rotating parts
• Wide Temperature range of -4 to 600°F (-20 to 315°C)
• Fixed 0.95 emissivity, 6:1 distance to target ratio
• Provides wide RPM (photo and contact) and
Linear Surface Speed (contact) measurements
• Accurate to 0.05% with max resolution of 0.1rpm
in either photo or contact mode
• Large 0.4" (5 digit) LCD display
• Non-contact Photo tachometer uses a Laser for
greater measuring distance up to 6.5ft (2m)
• Contact tachometer for RPM and
surface speed measurements
• Memory stores Min/Max/Last
• Characters on display reverse direction
depending on mode
• Double molded housing
• Complete with tips/wheel, four 1.5V AA batteries,
reflective tape, and carrying case
Specifications
| Specification | Value |
|---|---|
| Rotation Speed (Contact) | 0.5 to 20,000 rpm |
| Rotation Speed (Contact) Basic Accuracy | ±(0.05% of reading + 1 digit) |
| Rotation Speed (Contact) Max Resolution | 0.1 rpm |
| Rotation Speed (Strobe) | 10 to 99,999 rpm |
| Rotation Speed (Strobe) Basic Accuracy | ±(0.05% of reading + 1 digit) |
| Rotation Speed (Strobe) Max Resolution | 0.1 rpm |
| Surface Speed (Contact) | 0.2 to 6560 ft/min, 0.05 to 1999.9 m/min |
| Surface Speed (Contact) Basic Accuracy | ±(0.05% of reading + 1 digit) |
| Temperature (IR) Basic Accuracy | -4 to 600 °F (-20 to 315 °C) |
| Certifications | CE |
| Dimensions | 8.5 × 2.6 × 1.5" (216 × 66 × 38 mm) |
| Power | 4 × AA (1.5 V) batteries |
| Warranty | 2 years |
| Weight | 10.6 oz (300 g) |
