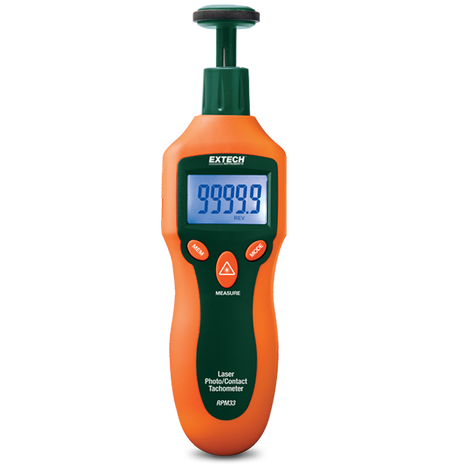

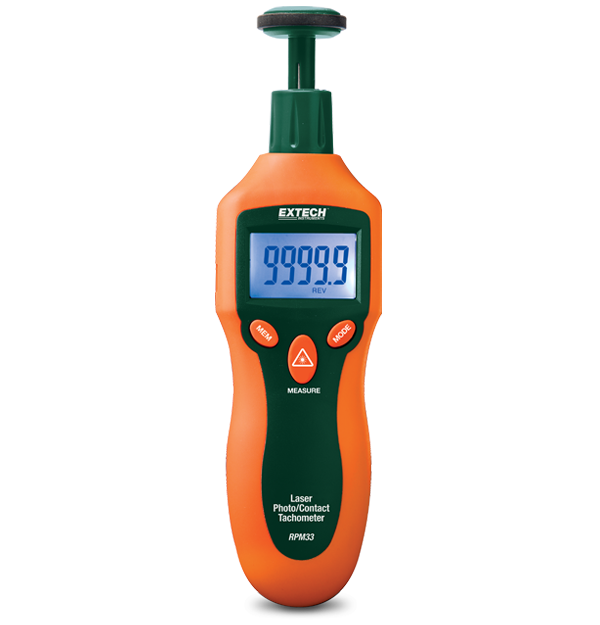

Extech RPM33 Combination Contact/Laser Photo Tachometer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Extech RPM33 provides both contact (2 to 19,999 rpm) and non-contact (2 to 99,999 rpm) revolutions per minute measurements for enhanced versatility. Safely record laser-guided non-contact RPM measurements from up to 500 mm (1.6 feet) away. The RPM33 displays on the large five-digit backlit LCD. Store and recall 10 data sets in memory with four parameters (measurement, max, min and average). The unit comes with contact wheel for linear surface speed 0 to 1999.9 meters/minute; 0.2 to 6560 feet/minute) or RPM measurements, 9-volt battery, reflective tape, carrying case, and user manual.
Features
• Large 5 digit backlit LCD display
• Microprocessor based with quartz crystal oscillator to
maintain high accuracy
• Store/recall 10 data sets in memory with 4 parameters
(measurement, max, min and average)
• Provides wide RPM (photo and contact) and Linear
Surface Speed/Length (contact) measurements
• Laser guided for greater distance non-contact
measurements up to 1.6ft (500mm)
• Complete with contact wheel for rpm or linear
surface speed/length, 9V battery, refl ective tape
and soft case
Specifications
| Specification | Value |
|---|---|
| Rotation Speed (Contact) | 2 to 20,000 rpm |
| Rotation Speed (Contact) Basic Accuracy | 0.05% of reading + 1 digit |
| Rotation Speed (Contact) Max Resolution | 0.1 rpm (< 10,000 rpm); 1 rpm (> 10,000 rpm) |
| Rotation Speed (Strobe) | 2 to 99,999 rpm |
| Rotation Speed (Strobe) Basic Accuracy | 0.05% of reading + 1 digit |
| Rotation Speed (Strobe) Max Resolution | 0.1 rpm (< 10,000 rpm); 1 rpm (> 10,000 rpm) |
| Sampling Time (Photo) | 0.5 Sec > 120 rpm |
| Surface Length (Contact) | 3.9 to 39,370 in, 0.3 to 3,280 ft, 0.1 to 1,093 yards, 0.1 to 1,000 m |
| Surface Length (Contact) Basic Accuracy | 0.05% of reading + 1 digit |
| Surface Speed (Contact) | 0 to 78,720 in/min, 0 to 6,560 ft/min, 0 to 2,186 yards/min, 0 to 2,000 m/min |
| Surface Speed (Contact) Basic Accuracy | 0.05% of reading + 1 digit |
| Certifications | CE |
| Dimensions | 6.2 × 2.3 × 1.6" (160 × 60 × 42 mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 5.3 oz (151 g) |
