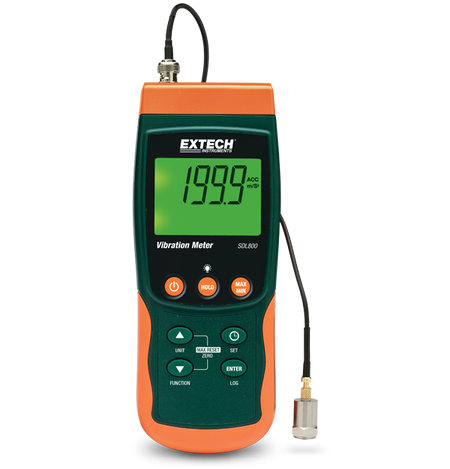

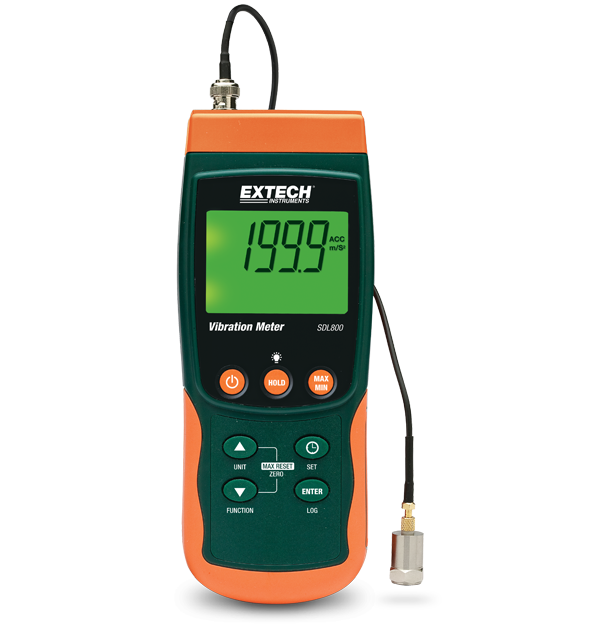

Extech SDL800 Vibration Meter/Datalogger
Regular price
3,500.00 SR
Regular price
Sale
3,999.00 SR
Sale price
3,500.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The SDL800 measures and datalogs vibration using a remote vibration sensor with magnetic adapter on 47.2"(1.2m) cable. It offers a wide frequency range of 10Hz to 1kHz with basic accuracy of ±(5% + 2 digits). Manually store 99 readings or continuously datalog using a SD memory card, which allows user to easily transfer collected data to a PC for further analysis as an Excel format. Complete with remote sensor, magnetic mount, 6 x AA batteries, SD card, and hard carrying case
Features
- Remote vibration sensor with magnetic adapter
on 47.2" (1.2m) cable
- Wide frequency range of 10Hz to 1kHz
- Basic accuracy of ±(5% + 2 digits); Meets ISO2954
- RMS, Peak Value or Max Hold measurement modes
- Adjustable data sampling rate: 1 to 3600 seconds
- Datalogger date/time stamps and stores readings on an SD
card in Excel
® format for easy transfer to a PC
- Offset adjustment used for zero function
to make relative measurements
- Large backlit LCD
- Stores 99 readings manually and 20M readings via SD card
- Record/Recall MIN, MAX readings
- Data Hold plus Auto power off with disable function
- Complete with remote sensor, magnetic mount,
6 x AA batteries, SD card, and hard carrying case
Specification
| Specification | Value |
|---|---|
| Acceleration | |
| Max Range | 656ft/s², 200m/s², 20.39g |
| Basic Accuracy | ±(5% of reading + 2 digits) |
| Max Resolution | 1ft/s², 0.1m/s², 0.01g |
| Displacement | |
| Max Range | 0.078in, 2mm (peak-to-peak) |
| Basic Accuracy | ±(5% of reading + 2 digits) |
| Max Resolution | 0.001in, 0.001mm |
| Memory | 20M data records using 2G SD card |
| Velocity | |
| Max Range | 7.87in/s, 200mm/s, 19.99cm/s |
| Basic Accuracy | ±(5% of reading + 2 digits) |
| Max Resolution | 0.01in/s, 0.1mm/s, 0.01cm/s |
| Certifications | CE |
| Dimensions | 7.2 × 2.9 × 1.9" (182 × 73 × 47.5mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 3 years |
| Weight | 21.1oz (599g) |
