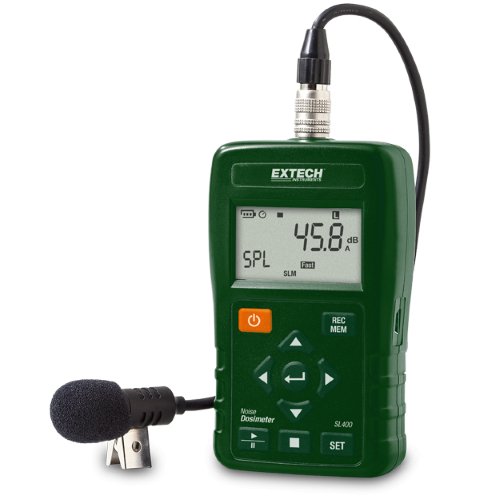

Extech SL400 Personal Noise Dosimeter with USB Interface

Out of stock
SKU: SL400
2,800.00 SR
Sale 3,450.00 SR 2,800.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Sound level monitoring is essential to determine what protective measures are required for employees who are routinely exposed to loud noise. Perform noise surveys in compliance with OSHA, MSHA, DOD, ACGIH, and ISO standards with the Extech SL400 dosimeter. An SL400 noise accumulation survey can determine total sound exposure over an 8-hour period. This compact, lightweight dosimeter can also serve as a sound level meter, logging up to 999,999 readings with sampling times between 1 second and 24 hours. An optional 94 dB calibrator allows you to perform before-and-after calibration checks, per ANSI standards. The SL400 comes with PC software to control setup and retrieve stored events or analyze real-time measurements.


Features

  •   Measures frequency weighted noise exposure and peak (C, Z) sound level

  • Datalogs up to 999,999 readings when used as a sound level meter with sampling times between 1 second and 24 hours

  • Sound level mode: displays sound level, min/max, time-averaged sound level (Leq), peak, and sound exposure level (SEL)

  • Adjustable Criterion Level, Exchange Rate, & Threshold

  • One user-defined measurement setup

  • Optional 94dB calibrator to perform “before” and “after” calibration checks per ANSI standards

  • USB interface with Windows® 7 and 8 compatible software to control setup and retrieve stored events or analyze real-time measurements

  • Complete with belt clip, clip-on 0.5" (12.7mm) microphone with 32" (81.3cm) cable and windscreen, 9V battery, software, USB cable, and carrying case


Specification

  • Standards: IEC61252-1993, IEC67672-1-2003, ANSI S1.25-1992, ANSI S1.4-1983, ANSI S1.43-1997

  • Ranges (Accuracy): 30 to 90 dB, 50 to 110dB; C, Z Peak: 70 to 140dB / C and Z Peak: 90 to 143dB (Accuracy: ±1.4dB@94dB 1kHz)

  • Frequency Weighting: A, C, Z

  • Response Rate: Fast, Slow, Impulse

  • Bandwidth: 20Hz to 8kHz

  • Memory:
    Dose: 10,000 points/SLM: 999,999 points

  • Criterion Level / Threshold Level: 30 to 140dB in 0.1dB steps / 30 to 140dB in 0.1dB steps

  • Exchange Rate: 3, 4, 5 or 6 dB

  • Measurement Duration: 5, 10, 15, or 30 minutes; 1, 2, 4, 8, 10, 12, or 24 hours

  • Measurement Modes: %Dose, Lxmax, Lxyp, Lxmin, Lxeq, SEL (LAE), PeakMAX, LAVG, TWA, LEP, LN% SPL, Lxmax, Lxyp, Lxmin, Lxeq, SEL (LAE) PeakMAX

  • Dimensions: 4.2 x 2.6 x 1.3” (107 x 65 x 33mm) - exclude connector on top/

  • Weight: 7oz. (198g) include batteries and microphone cable



Downloads

SL400 Datasheet
