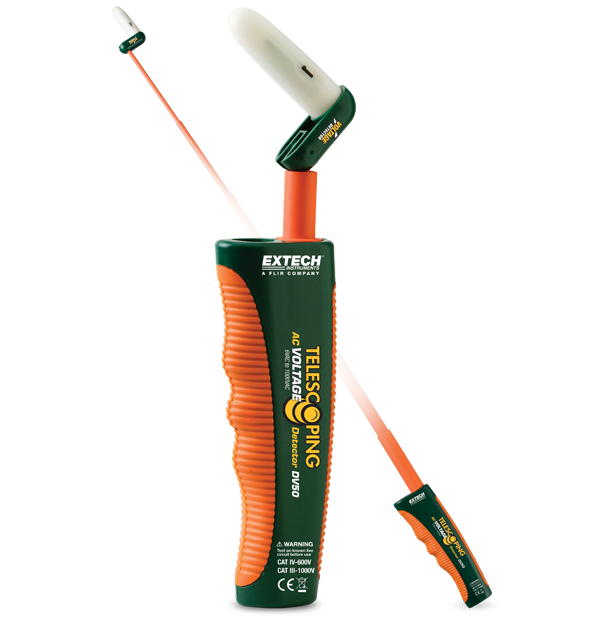

EXTECH Telescoping AC Voltage Detector (DV50)
Regular price
102.86 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The EXTECH DV50 is a telescoping AC voltage detector that allows for non-contact detection of AC voltage up to 1000VAC. It is designed for ease of use in hard-to-reach areas, making it an essential tool for electricians and technicians.
Features
- Non-Contact Detection: Detects AC voltage from 6VAC to 1000VAC (50/60Hz).
- Telescoping Probe: Extends to a total reach of 39 inches (1 meter) for accessing difficult locations.
- Visual and Audible Indicators: Equipped with a red LED voltage indicator and an on/off controlled audible beeper.
- Sensitivity Adjustment: Allows users to increase or reduce the sensor trigger threshold.
- Safety Ratings: Complies with EN 61326 CAT IV 600V and EN 61326 CAT III 1000V safety standards.
- Compact Design: Dimensions of 7.7 x 2.4 x 1.2 inches (195 x 62 x 30 mm) and a weight of 5.2 oz (148g).
Specifications
| Specification | Details |
|---|---|
| Model Number | DV50 |
| Voltage Detection Range | 6VAC to 1000VAC |
| Telescoping Length | 39 inches (1 meter) |
| LED Indicator | Red LED |
| Audible Beeper | On/Off controlled |
| Sensitivity Adjustment | Yes |
| Safety Ratings | EN 61326 CAT IV 600V, CAT III 1000V |
| Dimensions | 7.7 x 2.4 x 1.2 inches |
| Weight | 5.2 oz (148g) |
