Extech TG20 Wire Tracer Kit
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

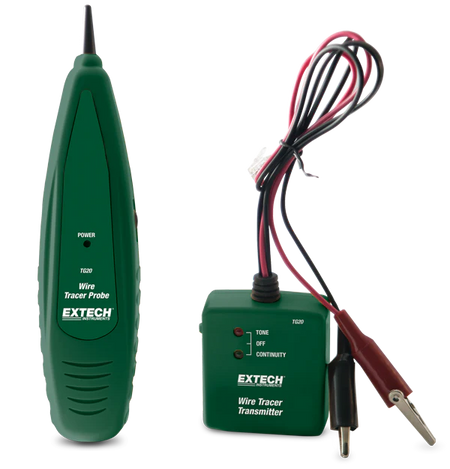

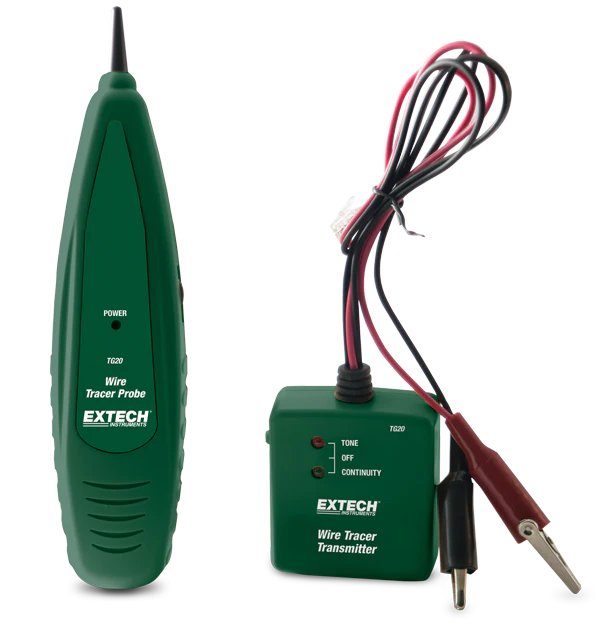

The TG20 Wire Tracer Kit identifies wire pairs, check continuity and test telephone line polarity. Transmitter has output cables terminated in modular RJ11 phone connector. The non-contact amplifier probe audibly identifies the selected wire or cable so that you can easily trace from source to termination. Comes complete with Wire Tracer Probe and Transmitter with RJ11 phone connector, a pair of alligator clips and two 9V batteries.
Features
• Transmitter with output cables terminated in
modular RJ11 phone connector
• Transmitter injects traceable signal into
cables, checks telephone lines, and performs
continuity checks
• Non-Contact probe audibly identifies
selected wire or cable
• Easily trace wires from source to termination
• Test for properly operating phone lines
• Adjustable sensitivity control improves wire
identification and eliminates false detection
• Continuity test — visible indication
• Dimensions/Weight:
Probe - 8.7x2x1.3” (220x50x32mm)/ 3.2oz (91g);
Transmitter - 2.6x2.7x1.1” (65x68x28mm)/ 3.2oz (91g)
• Complete with Wire Tracer Probe and Transmitter with
RJ11 phone connector and pair of alligator clips, and
two 9V batteries
Specifications
| Specification | Value |
|---|---|
| Transmitter | Output cables terminated in modular RJ11 phone connector |
| Functionality | Injects traceable signal into cables, checks telephone lines, and performs continuity checks |
| Non-Contact Probe | Audibly identifies selected wire or cable |
| Wire Tracing | Easily trace wires from source to termination |
| Phone Line Testing | Tests for properly operating phone lines |
| Sensitivity Control | Adjustable sensitivity improves wire identification and eliminates false detection |
| Continuity Test | Visible indication |
| Dimensions (Probe) | 8.7 × 2 × 1.3” (220 × 50 × 32 mm) |
| Weight (Probe) | 3.2 oz (91 g) |
| Dimensions (Transmitter) | 2.6 × 2.7 × 1.1” (65 × 68 × 28 mm) |
| Weight (Transmitter) | 3.2 oz (91 g) |
| Included Accessories | Wire Tracer Probe, Transmitter with RJ11 phone connector, pair of alligator clips, and two 9V batteries |
