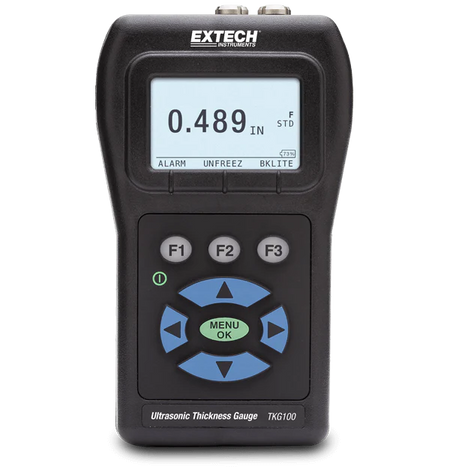

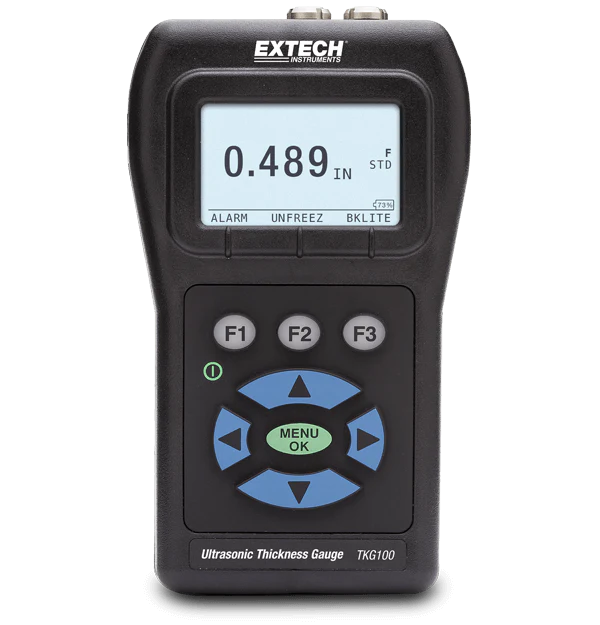

Extech TKG100 Digital Ultrasonic Thickness Gauge
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Extech TKG100 offers Thickness Gauges designed in compact, handheld, rugged housing ideal for field use. The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures. It includes multiple transducer options for high temperature and difficult to measure materials. Complete with 2oz bottle of coolant, 2 AA batteries, 5 MHz Transducer, and hard carrying case.
Features
• Wide measurement range:
5MHz probe: 0.040" to 20" of steel
10MHz probe: 0.030" to 2" of steel (optional)
• Sunlight readable dot-matrix display with backlight
• Multiple transducer options for high temperature
and difficult to measure materials
• Fast minimum feature to capture minimum thicknesses
• On screen display of 8 languages
• Splash-proof (IP54), high impact, compact housing
Specifications
| Specification | Value |
|---|---|
| Material Velocity Calibration | 0.200 to 0.7362 in/µS (0.508 to 18.699 mm/µS) |
| Steel Thickness (5 MHz probe) | 0.040 to 20" (1.0 to 508 mm) |
| Steel Thickness (10 MHz probe) | 0.030" to 2" (0.76 mm to 50.8 mm) |
| Certifications | CE |
| IP Rating | IP54 |
| Power | 2 × AA (1.5 V) batteries |
| Warranty | 2 years |
