EXTECH Tone Generator (40180)

Out of stock
SKU: 40180
Regular price 450.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

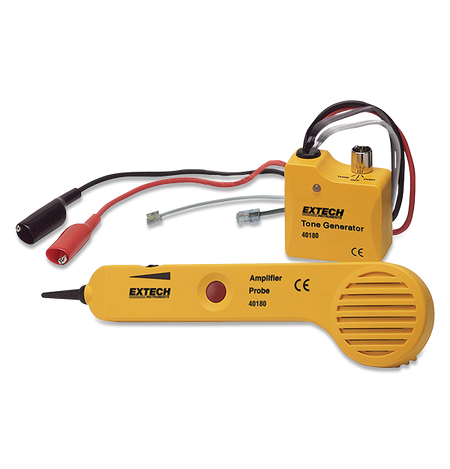

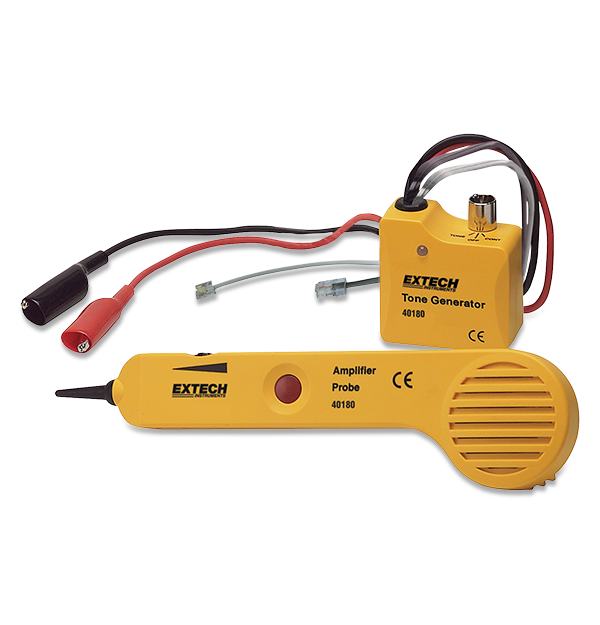

The EXTECH 40180 is a Tone Generator and Amplifier Probe Kit designed for easily identifying wires and cables. This heavy-duty kit features an audible tone that assists in tracing wires without direct contact.

Features
  • Wire Tracing: Effectively identifies wires and cables.
  • Insulated Probe Tip: Prevents shorting conductors during use.
  • Testing Functions: Includes wire trace, continuity test, and clear/busy/ringing line test.
  • Identification: Capable of tip or ring identification.
  • Included Accessories: Comes with alligator clips, RJ45 and RJ11 modular connectors, a 9V battery, and a carrying case.
Specifications
Specification Details
Tone Output 1kHz, 6V square wave (approximately)
Dimensions Probe: 9 × 2.25 × 1" (228 × 57 × 25.4mm); Generator: 2.5 × 2.5 × 1.5" (63.5 × 63.5 × 38.1mm)
Power 2 × 9V batteries
Warranty 2 years
Weight 9.6 oz (272 g)
Certifications CE
