EXTECH

EXTECH TRIPLE AXIS EMF

Only 1 left
SKU: 480826
1,540.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

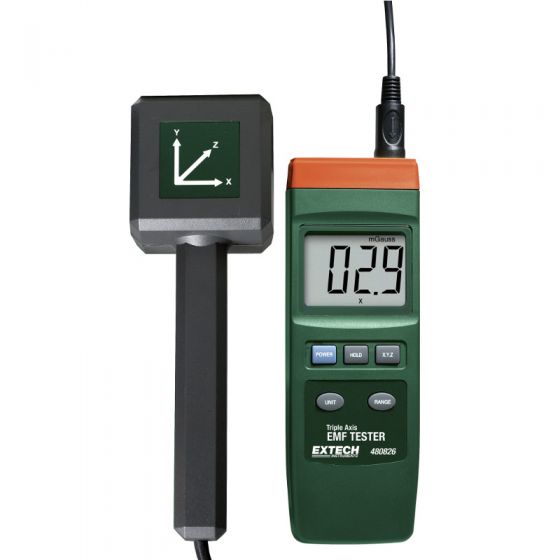

The EXTECH 480826 Triple Axis EMF Tester is a specialized device designed to measure electromagnetic field (EMF) radiation levels across three axes (X, Y, and Z). This tester is particularly useful for assessing EMF radiation from various sources such as power lines, electrical appliances, and industrial equipment.

Features
  • Measurement Ranges:
    • Microtesla (µT): 20 µT, 200 µT, 2000 µT
    • Milligauss (mG): 200 mG, 2000 mG, 20,000 mG
  • Resolution:
    • µT: 0.01 µT, 0.1 µT, 1 µT
    • mG: 0.1 mG, 1 mG, 10 mG
  • Accuracy:
    • µT: ±(4% + 3d), ±(5% + 3d), ±(10% + 5d)
    • mG: ±(4% + 3d), ±(5% + 3d), ±(10% + 5d)
  • Bandwidth: 30 Hz to 300 Hz
  • Sampling Time: Approximately 0.4 seconds
  • Power Consumption: Approximately DC 2.7 mA
  • Dimensions: 7.6 x 2.6 x 1.2 inches (195 x 68 x 30 mm)

The device also features a data hold function that allows users to freeze the last reading on the display for easy recording and analysis, making it user-friendly for both professionals and hobbyists.

Specifications
Specification Details
Model No 480826
Measurement Ranges 20 µT, 200 µT, 2000 µT; 200 mG, 2000 mG, 20,000 mG
Resolution 0.01 µT, 0.1 µT, 1 µT; 0.1 mG, 1 mG, 10 mG
Accuracy ±(4% + 3d), ±(5% + 3d), ±(10% + 5d)
Bandwidth 30 Hz to 300 Hz
Sampling Time Approximately 0.4 seconds
Power Current Approximately DC 2.7 mA
Dimensions 7.6 x 2.6 x 1.2 inches (195 x 68 x 30 mm)
Downloads


Extech 480826 Datasheet
