EXTECH TRU RMS AC Clamp Meter (MA443)
Regular price
246.40 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

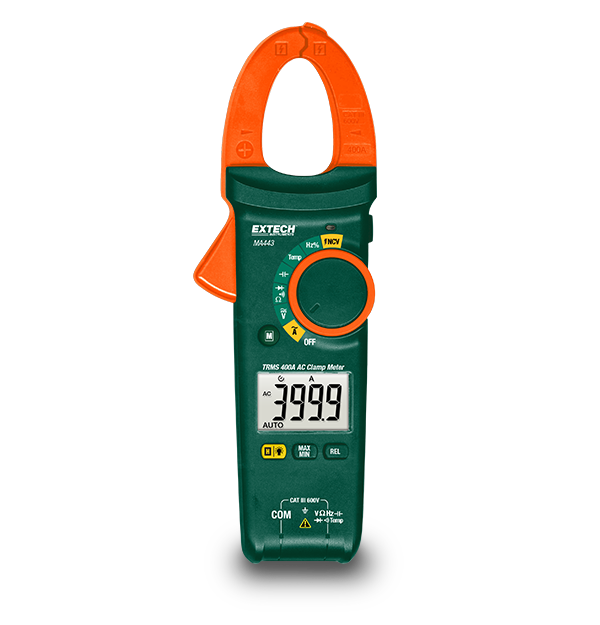

The EXTECH MA443 is a True RMS AC Clamp Meter designed for accurate measurements of AC current, voltage, resistance, and more. It is ideal for professionals in electrical testing and troubleshooting applications.
Features
- True RMS Measurement: Provides accurate readings for non-sinusoidal waveforms.
- AC Current Measurement: Measures up to 400A with a basic accuracy of ±1.8%.
- Voltage Measurement: AC and DC voltage measurement up to 600V with basic accuracy of ±1.2% for AC and ±0.8% for DC.
- Capacitance and Frequency Measurement: Capacitance up to 40mF and frequency up to 1MHz.
- Non-Contact Voltage (NCV) Detector: Detects voltage from 100 to 600VAC.
- Temperature Measurement: Type K thermocouple input for temperature measurements ranging from -40°F to 1832°F (-40°C to 1000°C).
- Built-in Functions: Includes continuity testing, duty cycle measurement, and data hold function.
- Compact Design: Lightweight and portable with a jaw size of 1.2" (30mm) for conductors up to 500MCM.
Specifications
Specification | Details |
---|---|
Model Number | MA443 |
AC Current Range | 400.0A |
AC Voltage Range | 600V |
DC Voltage Range | 600V |
Resistance Range | 40MΩ |
Capacitance Range | 40mF |
Frequency Range | 1MHz |
Temperature Range | -40 to 1832°F (-40 to 1000°C) |
Dimensions | 9 × 3 × 1.6" (228 × 77 × 41mm) |
Weight | 9.3 oz (265g) |
Power Supply | 3 × AAA (1.5V) batteries |
Warranty | 2 years |
