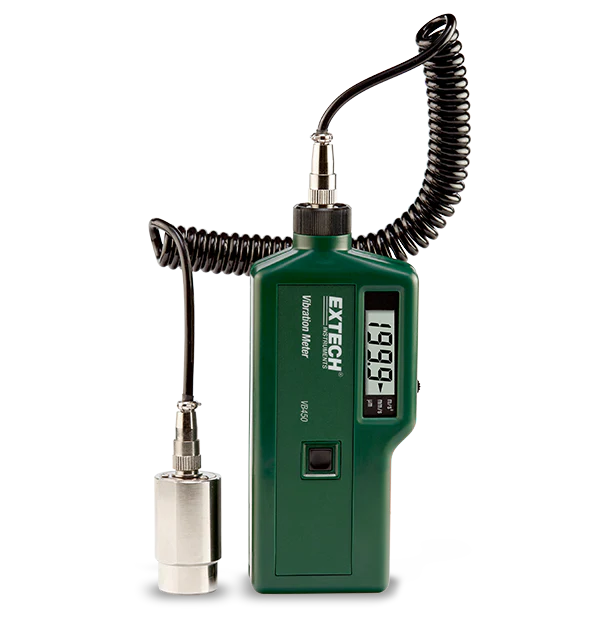

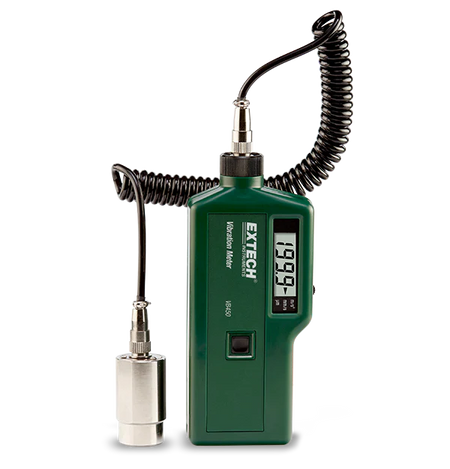

Extech VB450 Vibration Meter
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The VB450 is a convenient compact sized Vibration Meter which measures vibration levels in industrial machinery. Misalignment, poor balancing, structural compromises, and other factors can cause unwanted vibration increases. VB450 features a wide 10Hz to 1500Hz frequency range and provides Displacement, Velocity, and Acceleration measurement. Complete with remote sensor, magnetic mount, 9V battery, wrist strap, and soft case.
Features
• Remote vibration sensor with magnetic adapter
on 7.9" (0.2m) coiled cable
• Wide frequency range of 10Hz to 1500Hz
• Velocity (RMS), Acceleration (Peak), and Displacement
(Peak-to-Peak) measurements
• Automatic data hold after measurement button
is released
• Auto power off after 1 minute
• Low battery indicator
• Complete with remote sensor, magnetic mount,
9V battery, wrist strap, and soft case
Specifications
| Specification | Value |
|---|---|
| Acceleration | 0.1 to 199.9 m/s² |
| Acceleration Basic Accuracy | ±(5% of reading + 1 digit) |
| Acceleration Max Resolution | 0.1 m/s² |
| Displacement | 1 to 1999 µm |
| Displacement Basic Accuracy | ±(5% of reading + 1 digit) |
| Displacement Max Resolution | 1 µm |
| Velocity | 0.1 to 199.9 mm/s |
| Velocity Basic Accuracy | ±(5% of reading + 1 digit) |
| Velocity Max Resolution | 0.1 mm/s |
| Certifications | CE |
| Dimensions | 7.3 × 2.7 × 1.2" (185 × 68 × 30 mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 8.1 oz (230 g) |
