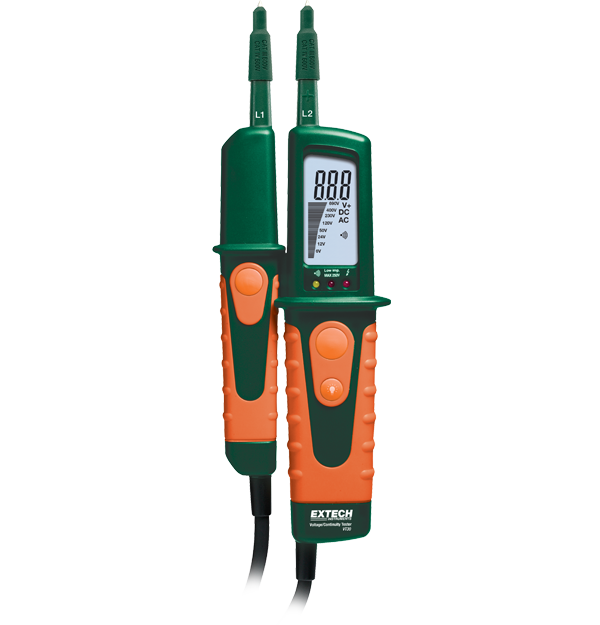

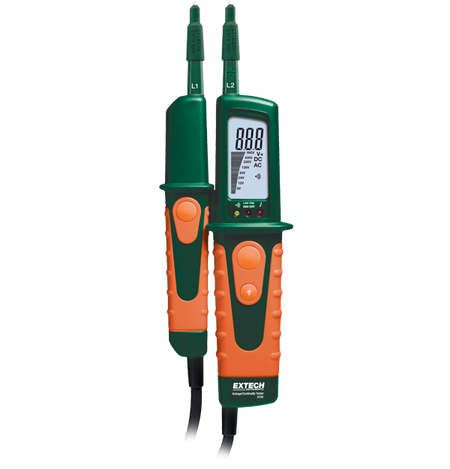

Extech VT30 LCD Multifunction Voltage Tester
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Extech VT30 is a voltage, continuity and phase tester, featuring a built-in flashlight and backlit digital display with bar graph. This rugged tester is protected by a double molded IP64 housing and offers polarity detection with LEDs for positive and negative DC as well as a CAT III 600 Volt / CATIV 600 Volt safety rating. The VT30 comes complete with a one year warranty, 2 AAA batteries, protective cap, and pouch case.
Features
• Large backlit LCD display
• LCD AC/DC voltage indication:
6V, 12V, 24V, 50V, 230V, 400V, 690V
• Polarity detection with LEDs for positive and negative DC
• Continuity Test with audible tone
• Two handed operation for low impedance testing
• Built-in flashlight for testing in tight areas
• Rubberized double-molded IP64 housing
• EN61010-1 CAT IV 600V and CAT III 600V safety rating
• Dimensions: 9.4x3x1.6" (240x78x40mm)
Weight: 8.4oz (237g)
• Complete with 2 AAA batteries, protective cap, and pouch case
Specifications
| Specification | Value |
|---|---|
| AC Voltage | 0 to 480V AC |
| AC Voltage Basic Accuracy | ±(1.5% of reading + 5 digits) |
| AC Voltage Max Resolution | 1V |
| Built-In Flashlight | Yes |
| Continuity | 0 to 200 kΩ, guaranteed on < 50 kΩ |
| DC Voltage | 0 to 690V DC |
| DC Voltage Basic Accuracy | ±(1.0% of reading + 3 digits) |
| DC Voltage Max Resolution | 1V |
| Frequency Bandwidth | 50/60 Hz |
| Input Impedance | 1 MΩ (approx) |
| Low Impedance | 12-250V AC/DC; impedance < 6 kΩ |
| Max Current | 1.0 mA (400 VAC); 1.5 mA (690 VDC) |
| Response Time | Updates 2-3 times/sec |
| Certifications | CE |
| Dimensions | 9.4 × 3 × 1.6" (240 × 78 × 40 mm) |
| IP Rating | IP64 |
| Power | 2 × AAA (1.5 V) batteries |
| Safety Category | CAT III - 600V, CAT IV - 600V |
| Warranty | 2 years |
| Weight | 9.2 oz (260 g) |
