EXTECH Wireless AC Circuit Identifier (RT32)

Out of stock
SKU: RT32
Regular price 436.80 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

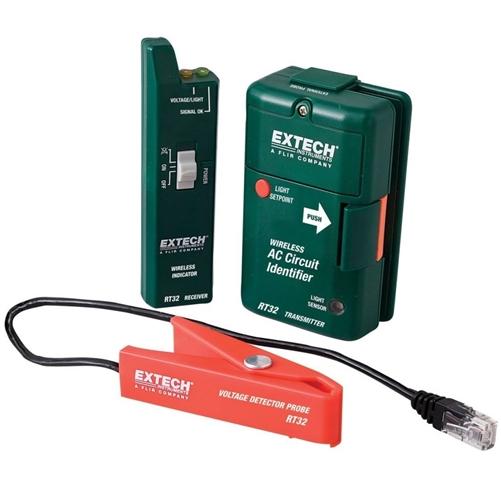

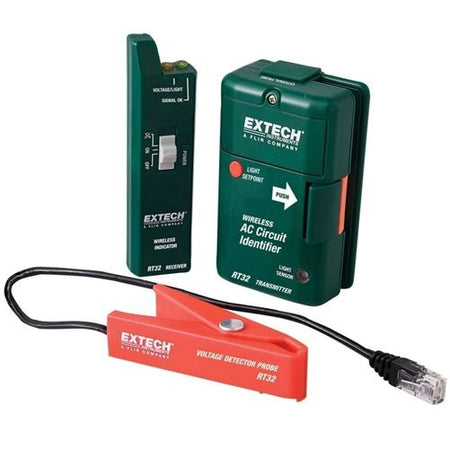

The EXTECH RT32 is a wireless AC circuit identifier that combines non-contact voltage detection with RF (Radio Frequency) transmission technology. This tool allows users to identify mid-run wires and find the breaker that powers a circuit or light fixture without direct wire connections.

Features
  • Non-Contact Voltage Detection: Simplifies mid-run wiring jobs by easily identifying the correct circuit powering the cable.
  • Wireless Transmission: The transmitter signals the user at the breaker panel with LED and audible alerts, with a range of up to 100 meters.
  • Clamp-Style Probe: Ideal for wires that are hard to isolate or reach.
  • Built-in Light Sensor: Easily identifies lighting and outlet circuits.
  • User-Friendly: Eliminates the need for an assistant or back-and-forth trips to confirm the correct circuit is powered down.
Specifications
Specification Details
Model Number RT32
Transmission Frequency 869 MHz
Transmission Distance Approx. 100m (328')
Power Supply Two (2) 'AAA' batteries
Operating Temperature -10 to 50°C (14 to 122°F)
Storage Temperature -30 to 60°C (-14 to 140°F)
Operating Humidity 90% RH max
Dimensions 101 x 61 x 38 mm (4.0 x 2.4 x 1.5") for transmitter; 114 x 30 x 26 mm (4.5 x 1.17 x 1.02") for receiver
Weight 0.23 kg (8.0 oz) total
