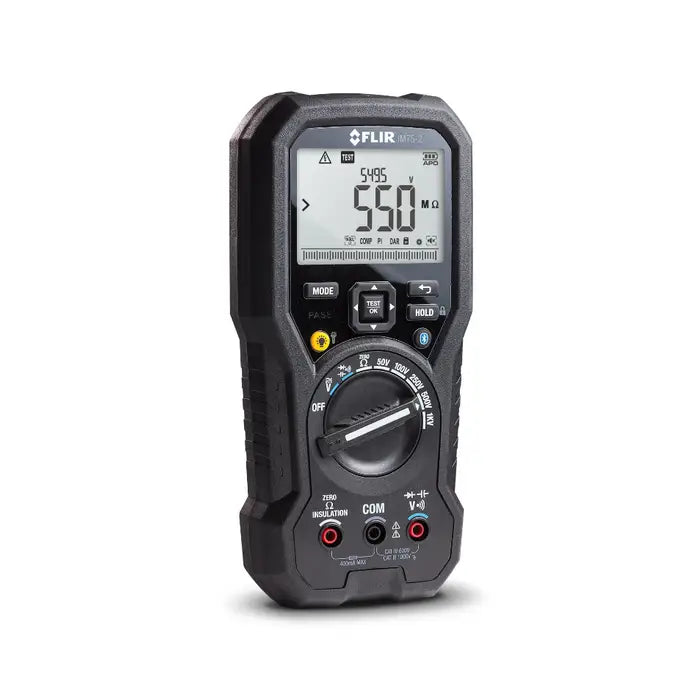

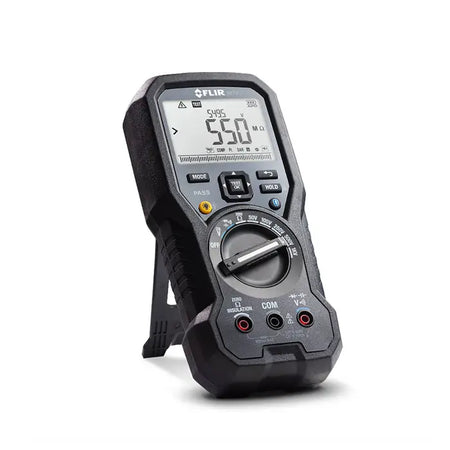

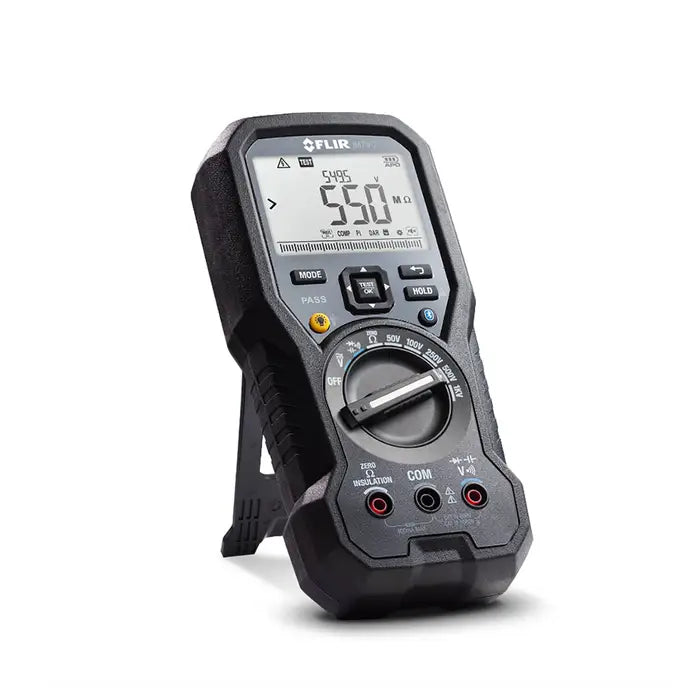

FLIR IM75-2 Insulation Tester and Digital Multimeter
Regular price
0.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The FLIR IM75-2 is a versatile insulation tester and digital multimeter designed for professionals in installation, troubleshooting, and maintenance. It is capable of testing insulation at voltages up to 1 kV and measuring insulation resistance from 4 MΩ to 20 GΩ. This device is particularly useful for ensuring the safety and reliability of electrical systems.
Key Features
- Insulation Testing: Tests insulation at voltages up to 1 kV and measures insulation resistance from 4 MΩ to 20 GΩ.
- True RMS Measurement: Provides accurate AC and DC measurements, ensuring reliable performance.
- VFD Mode: Utilizes a low-pass filter to deliver precise voltage, current, and frequency readings in environments affected by variable frequency drives.
- Auto Select Mode: Automatically selects the appropriate operating mode and measurement scale based on the input signal.
- Durable Design: Features a double-molded construction with an IP54 rating and is drop tested to 3 meters, making it suitable for tough working conditions.
- Built-in LED Work Lights: Illuminates work areas, facilitating inspections in low-light conditions.
- Wireless Communication: Compatible with the FLIR METERLiNK app for capturing readings, creating reports, and sharing data with teams.
Specifications
| Specification | Value |
|---|---|
| Voltage Range | Up to 1 kV |
| Resistance Range | 4 MΩ to 20 GΩ |
| Safety Rating | CAT IV-600V, CAT III-1000V |
| Display | Backlit dual display |
| Memory | Internal memory for storing readings |
