FLIR IRW-PS Stainless 12 inch (IRW-12PS)

Out of stock
SKU: IRW-12PS
Regular price 4,000.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

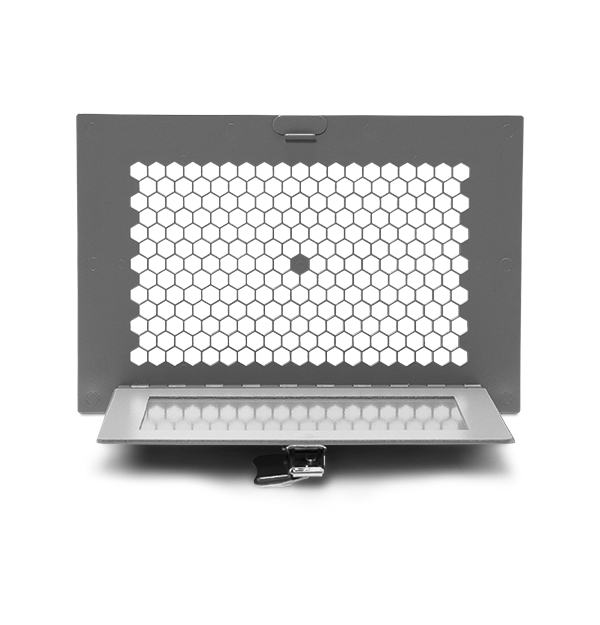

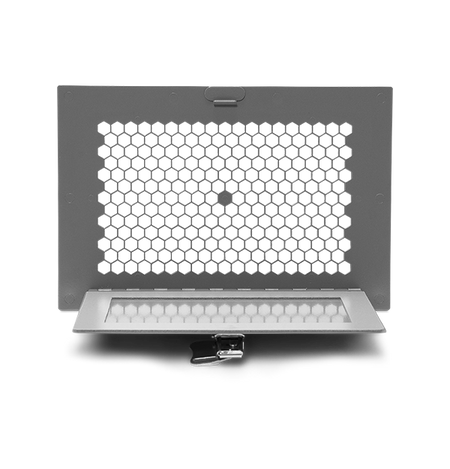

The FLIR IRW-PS Stainless 12 inch is an infrared (IR) window designed to provide a safe barrier for inspecting energized electrical equipment. This window allows for thermal imaging and visual inspections without compromising safety.

Features
  • Durable Construction: Made from stainless steel, the IR window is impact-resistant and suitable for harsh industrial environments.
  • Temperature Range: Operates effectively in temperatures ranging from -40°F to 617°F (-40°C to 325°C).
  • Large Viewing Area: The 12-inch size provides a significant viewing area for monitoring equipment.
  • Automatic Grounding: Ensures safety during inspections by automatically grounding the window.
  • UL and CSA Certifications: Complies with various safety standards, including UL 50V, 50E, and CSA C22.2.
Specifications
Specification Details
Model No IRW-12PS
Aperture Dimensions 5 x 9.3 inches (12.7 x 23.6 cm)
Maximum Operating Temperature -40 to 523°F (-40 to 273°C)
Material Stainless steel and reinforced polymer
NEMA Rating Type IP65 / NEMA 4x
Dimensions 8.1 x 12 inches (20.6 x 30.5 cm)
