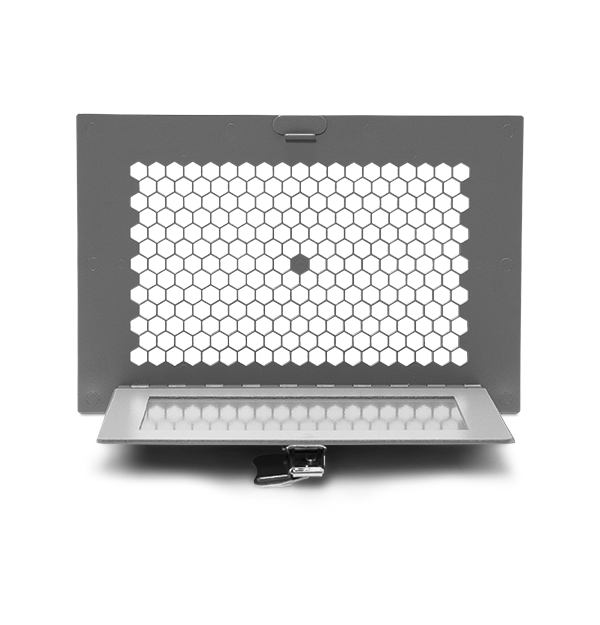

The FLIR IRW-PS Stainless 6 inch is an infrared (IR) window designed for safe inspection of energized electrical equipment. This window allows for thermal imaging and visual inspections without compromising safety, making it ideal for various industrial applications.
Features
- Durable Construction: Made from stainless steel, the IR window is impact-resistant and suitable for harsh environments.
- Temperature Range: Operates effectively in temperatures from -40°F to 392°F (-40°C to 200°C).
- Large Viewing Area: The 6-inch size provides a significant viewing area for monitoring equipment.
- Automatic Grounding: Ensures safety during inspections by automatically grounding the window.
- UL and CSA Certifications: Complies with various safety standards, including UL 50V, 50E, and CSA C22.2.
Specifications
| Specification | Details |
|---|---|
| Model No | IRW-6PS |
| Aperture Dimensions | 5.9 x 3.6 inches (15 x 9.1 cm) |
| Maximum Operating Temperature | -40 to 392°F (-40 to 200°C) |
| Material | Stainless steel and reinforced polymer |
| NEMA Rating | Type IP65 / NEMA 4x |
| Dimensions | 8.6 x 6.3 inches (21.8 x 16 cm) |
