Fluke 1550C FC 5 kV Digital Insulation Tester

Out of stock
SKU: 1550C
Regular price 13,000.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links

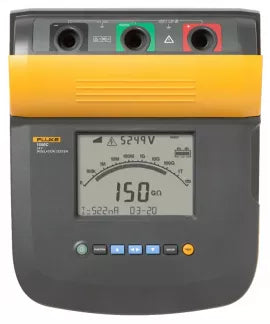

The Fluke 1550C FC is a high-performance digital insulation tester designed for preventative maintenance applications. It is capable of testing insulation resistance up to 5 kV, making it suitable for a wide range of electrical testing scenarios.

Features
  • Test Voltage Range: Offers test voltages from 250 V to 5000 V.
  • Measurement Storage: Capable of storing measurements for later analysis.
  • Fluke Connect Compatibility: Allows for wireless data transfer and analysis through the Fluke Connect app.
  • Large Display: Features a digital/analog LCD for easy viewing of results.
  • Safety Ratings: CAT III 1000 V / CAT IV 600 V safety rating ensures safe operation in various environments.
Specifications
Specification Details
Insulation Resistance Measurement Up to 1 TΩ
Voltage Accuracy -0%, +10% at 1 mA load current
Leakage Current Measurement 1 nA to 2 mA
Capacitance Measurement 0.01 to 15 µF
Operating Temperature -20°C to 50°C
Dimensions 269 x 277 x 160 mm
Weight 3.7 kg (8.2 lbs)
