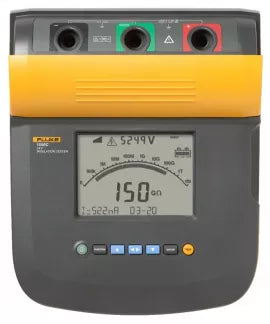

The Fluke 1555 FC is a high-performance insulation tester designed for testing insulation resistance up to 10 kV. It is ideal for use in various applications, including testing high voltage equipment such as switchgear, motors, generators, and cables.

Features
  • Remote Operation: Configure, start, and stop tests from a safe distance using Fluke Connect® and a smartphone.
  • Real-Time Trending: Provides visual cues through live graphs on your phone, making it easier to interpret rapidly changing values.
  • Data Storage: Can store measurements in up to 99 memory locations, each with a unique user-defined label for easy recall.
  • Automatic Calculations: Automatically calculates Dielectric Absorption Ratio (DAR) and Polarization Index (PI) without additional setup.
  • Safety Ratings: CAT III 1000 V and CAT IV 600 V safety ratings ensure safe operation in various environments.
Specifications
Specification Details
Test Voltage Range 250 V to 10 kV
Insulation Resistance Measurement Up to 2 TΩ
Leakage Current Measurement 1 nA to 2 mA
Capacitance Measurement 0.01 μF to 15.00 μF
Operating Temperature -20°C to 50°C
Dimensions 269 x 277 x 160 mm
Weight 3.7 kg (8.2 lbs)
Warranty 3 years
