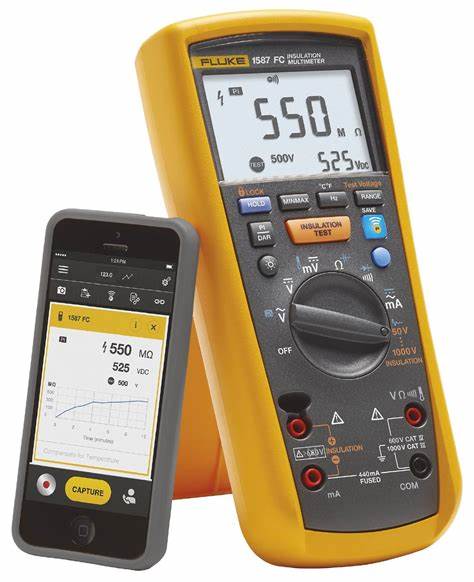

Fluke 1587 FC Insulation Multimeter
Regular price
3,500.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Fluke 1587 FC Insulation Multimeter is a versatile tool designed for electrical professionals to measure insulation resistance, voltage, current, and more. It combines the functionality of a digital multimeter with advanced insulation testing capabilities, making it ideal for troubleshooting and preventive maintenance.
Features
- Wireless Connectivity: The multimeter is Fluke Connect-enabled, allowing users to monitor test measurements remotely and share results wirelessly with smartphones.
- Insulation Testing: It performs insulation resistance tests with a range of test voltages (50 V, 100 V, 250 V, 500 V, and 1000 V) and provides PI/DAR timed ratio tests to identify moisture and insulation problems.
- Comprehensive Measurements: Measures AC/DC voltage, DC millivolts, AC/DC milliamps, resistance, capacitance, diode test, temperature, and frequency.
- Safety Features: Includes live circuit detection to prevent insulation tests if voltage exceeds 30 V and auto-discharge of capacitive voltage for user protection.
- Memory Storage: Saves measurements to the device or the cloud via Fluke Connect, eliminating the need for manual recording and reducing errors.
Specifications
Specification | Details |
---|---|
AC Voltage Measurement | Up to 1000 V |
DC Voltage Measurement | Up to 1000 V |
AC/DC Current Measurement | Up to 400 mA |
Insulation Resistance Range | 0.01 MΩ to 2 GΩ |
Resistance Measurement | Up to 50 MΩ |
Temperature Measurement | -40 °C to +400 °C |
Display | Digital LCD |
Dimensions | 203 x 100 x 50 mm |
Weight | 624 g |
Warranty | 3 years |
