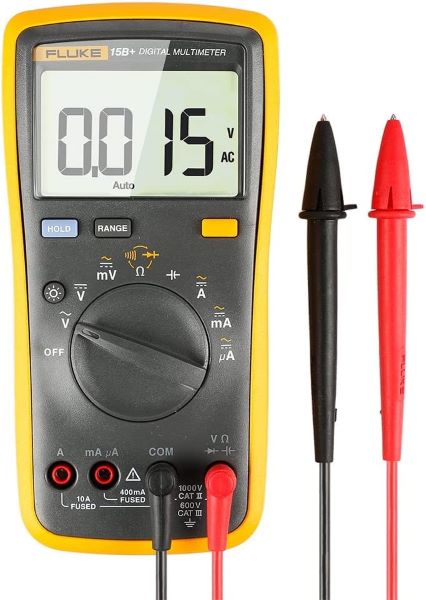

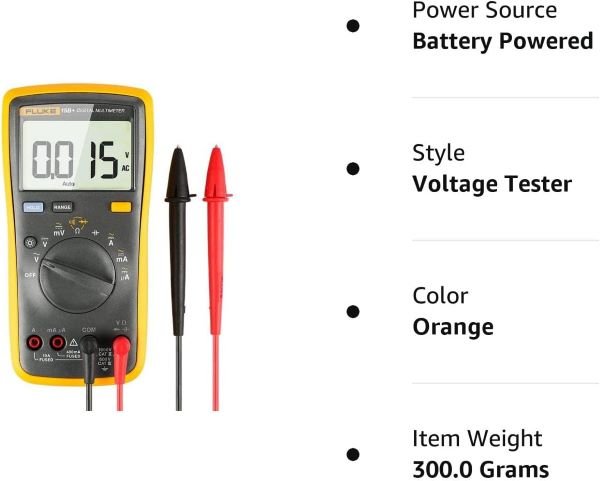

Fluke 15B+ Digital Multimeter
Regular price
550.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Fluke 15B+ is the revamped version of the much liked 15B DMM and is one of the cheaper devices from Fluke. Built mainly for China users, it is also available elsewhere and at a snip of the price of others from the US firm. It looks and feels like most other Flukes – trademark yellow holster, nice dial, sharp display – albeit with limited features. You do get the reliability factor, however, and it is very highly rated on e-commerce sites.
Features
- Max voltage: 1000V
- Max amperage: 10A
- Millivolts/milliamps/micro-amps – okay for electronics
- Large, backlit display
- Diode test & data hold
- Cat-III rating
- Size: 7.2″ (183mm) x 3.6″ (91mm) x 1.9″ (49.5mm)
- Weight: 1lb (455g)
Specification
| Specification | Value |
|---|---|
| AC Volts | |
| Range | 400 mV / 1000 V |
| Accuracy | ±(1.0% + 3) |
| Resolution | 1 mV - 1 V |
| DC Volts | |
| Range | 400 mV / 1000 V |
| Accuracy | ±(0.5% + 3) |
| Resolution | 1 mV - 1 V |
| AC Amps | |
| Range | 400 μA / 10 A |
| Accuracy | ±(1.5% + 3) |
| Resolution | 0.1 μA - 0.01 A |
| DC Amps | |
| Range | 400 μA / 10 A |
| Accuracy | ±(1.5% + 3) |
| Resolution | 0.1 μA - 0.01 A |
| Diode Test | |
| Range | 2 V |
| Accuracy | ±(10%) |
| Resistance | |
| Range | 400 Ω / 40 MΩ |
| Accuracy | ±(0.5% + 2) |
| Resolution | 0.1 Ω - 0.01 MΩ |
| Capacitance | |
| Range | 40 nF / 1000 μF |
| Accuracy | ±(2.0% + 5) |
| Resolution | 0.01 nF - 1 μF |
| Battery Type | 2 AA, NEDA 15A, IEC LR6 |
| Display (LCD) | 4000 counts, updates 3/sec |
| Fuse Protection for Current Inputs | 440 mA, 1000 V Fast Fuse, Fluke specified part only |
| 11 A, 1000 V Fast Fuse, Fluke specified part only | |
| IP Rating | IP 40 |
| Size (H x W x L) | 183 x 91 x 49.5 mm |
| Weight | 455 g |
