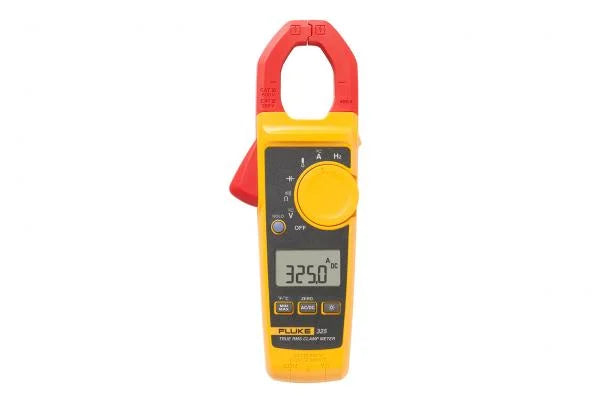

Fluke 325 True RMS Clamp Meter
Regular price
1,100.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Fluke 325 True-rms Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians. Featuring a slim design for easy transport and use, and a large display for efficient troubleshooting. In addition to true-rms AC current and voltage on non-linear loads, the 325 measures:
Features
- Measures AC/DC current up to 400 A through jaw
- AC/DC voltage to 600 V using test leads
- Measures frequency from 5 Hz to 500 Hz; resistance to 40 kΩ
- Measures temperature from -10 °C to 400 °C with included K-type thermocouple
- Min/Max function records important values
Specifications
| Specifications | ||
| AC current | Range | 40.00 A / 400.0 A |
| Accuracy | 2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz) |
|
| DC current | Range | 40.00 A / 400.0 A |
| Accuracy | 2% ± 5 digits | |
| AC voltage | Range | 600.0 V |
| Accuracy | 1.5% ± 5 digits | |
| DC voltage | Range | 600.0 V |
| Accuracy | 1.0% ± 5 digits | |
| Resistance | Range | 400.0 Ω / 4000 Ω / 40.00 kΩ |
| Accuracy | 1.0% ± 5 digits | |
| Continuity | ≤ 30 Ω | |
| Capacitance |
0 to 100.0 μF / 100μF to 1000 μF
|
|
| Frequency | 5.0 Hz to 500.0 Hz | |
| AC response | True-RMS | |
| Backlight | Yes | |
| Data hold | Yes | |
| Contact temperature | -10.0°C to 400.0°C (14.0°F to 752.0°F) | |
| Min/Max | Yes | |
| Size | H x W x D (mm) | 207 x 75 x 34 |
| Max wire diameter | 30 mm (600 MCM) | |
| Weight | 283 g | |
| Category rating | CAT III 600 V CAT IV 300 V |
|
| Warranty | Two-year | |
