Fluke 355 True RMS 2000 A Clamp Meter
Regular price
4,800.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

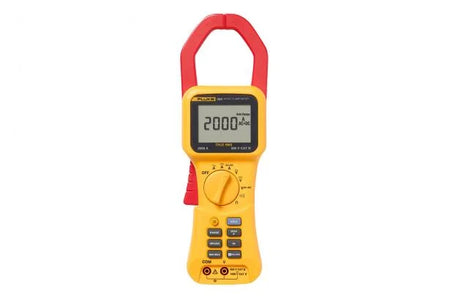

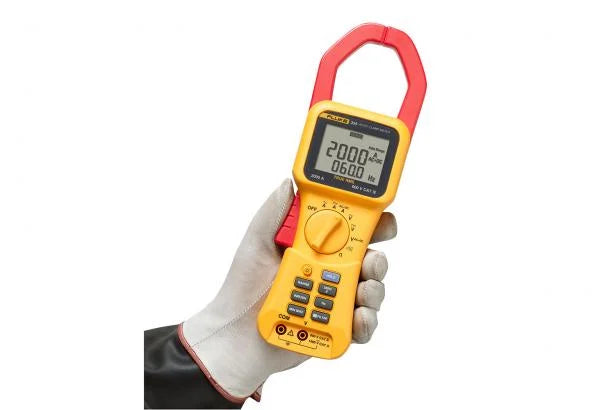

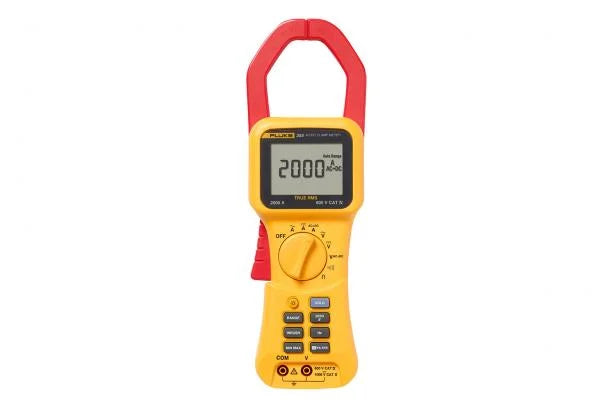

The True RMS Fluke 355 digital clamp meter, the tool of choice for high current clamp-on amp meter measurement up to 2000 A. The extra-wide jaw easily clamps around large conductors, typically found in high-current applications. The extra rugged design and CAT IV 600 V, CAT III 1000 V ratings add an extra element of user protection when taking high-powered measurements.
Features
- Reliably handle a wide range of high-current applications with 2000 A AC + DC True RMS, 1400 A AC, and 2000 A DC
- The large 58 mm (2.3 in) jaw capacity is suitable for large or multiple conductors
- CAT IV 600 V, CAT III 1000 V rating for added user protection
- In-rush current measurement captures ‘power-on’ surge current with accuracy and repeatability
Specifications
| Specification | Value |
|---|---|
| Batteries | Six 1.5 V AA (NEDA 15 A or IEC LR6) |
| Battery Life (Typical Usage, Backlight Off) | 100 hours |
| Test Leads | Rated to 1000 V |
| Weight | 0.814 kg (1.8 lb) |
| Jaw Size | 58 mm (2.28 in) |
| Dimensions (L x W x D) | 300 x 98 x 52 mm (12 x 3.75 x 2 in) |
| Safety Rating | IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III |
| Operating Temperature | 32°F to +122°F (0°C to +50°C) |
| Storage Temperature | -4°F to 140°F (-20°C to +60°C) |
| Operating Humidity | 0 to 95% (non-condensing) |
| Operating Altitude | 2000 m |
| Storage Altitude | 10,000 m |
| IP Rating | IP 42 (indoor use only) |
| Drop Test Requirements | 1 m |
| EMI, RFI, EMC | FCC part 15, IEC/EN 61326-1:1997 class B |
| IEC/EN 61326:1997 3 V/m, performance criteria B | |
| Temperature Coefficients | Current: 0.1% of reading per °C outside 22°C to 24°C |
| Voltage: 0.1% of reading per °C outside 22°C to 24°C |
