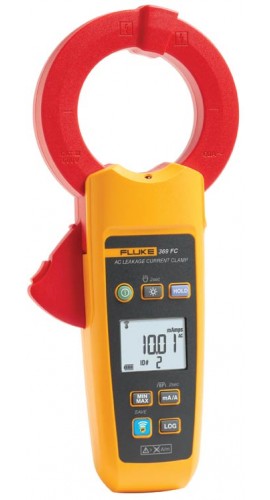

Fluke 368 FC Leakage Current Clamp Meter (368FC)

Out of stock
SKU: 368FC
Regular price 2,400.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links


The Fluke 368 FC Leakage Current Clamp Meter is designed to help users detect, document, record, and compare leakage current readings over time. This tool is essential for preventing unplanned downtime and identifying intermittent GFCI and RCD trips without taking equipment offline.

Features
  • True-RMS Measurements: Ensures accuracy when measuring complex, non-sinusoidal waveforms.
  • Large Jaw Opening: The 40 mm diameter jaw can accommodate large conductors.
  • High Resolution: Offers the highest resolution of 1 μA and can measure up to 60 A.
  • Selectable Filter Function: Removes unwanted noise for clearer readings.
  • Data Logging: Internal memory can log up to 65,000 measurement points.
  • Wireless Connectivity: Compatible with Fluke Connect for tracking changes in leakage current over time.
  • LED Worklight: Forward-facing LED worklight for use in dark environments.
  • Backlit Display: Features an auto backlight off and auto power off for extended battery life.
Specifications
Specification Details
AC Ampere Range 3 mA, 30 mA, 300 mA, 3 A, 30 A, 60 A
Measurement Accuracy 1% + 5 digits (filter activated)
Frequency Range 40 Hz to 1 kHz
Maximum Conductor Diameter 40 mm
Dimensions 234 x 101 x 46 mm
Weight 500 g
Battery Life Over 150 hours without backlight
Safety Rating CAT III 600 V
