FLUKE 374 TRUE RMS AC/DC CLAMP METER
Regular price
1,462.50 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

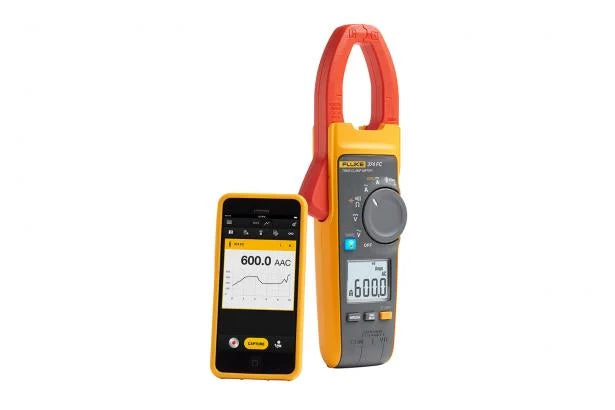

The FLUKE 374 FC True-RMS AC/DC Clamp Meter is an advanced tool designed for electrical troubleshooting and measurement. It allows users to measure both AC and DC currents up to 600 A and voltages up to 1000 V, making it suitable for a wide range of applications.
Features
- True RMS Measurements: Provides accurate readings for non-linear signals.
- Wireless Connectivity: Transmits measurements to smartphones via Fluke Connect® for remote viewing and data logging.
- Flexible Current Probe Compatibility: Can be used with the optional iFlex® probe to measure currents up to 2500 A AC.
- Resistance and Capacitance Measurement: Measures resistance up to 6000 Ω and capacitance up to 1000 µF.
- Data Logging: Logs and trends measurements to help identify intermittent issues.
- Safety Ratings: CAT III 1000 V and CAT IV 600 V safety rated for safe operation in various environments.
Specifications
Specification | Details |
---|---|
Model Number | FLUKE 374 FC |
AC Current via Jaw | 600.0 A |
AC Current via iFlex Probe | 2500 A |
DC Current | 600.0 A |
AC Voltage | 1000 V |
DC Voltage | 1000 V |
Resistance | 6000 Ω |
Capacitance | 1000 µF |
Operating Temperature | -10 °C to +50 °C |
Dimensions | 249 x 85 x 45 mm |
Weight | 395 g |
Battery | 2 AA Alkaline |
