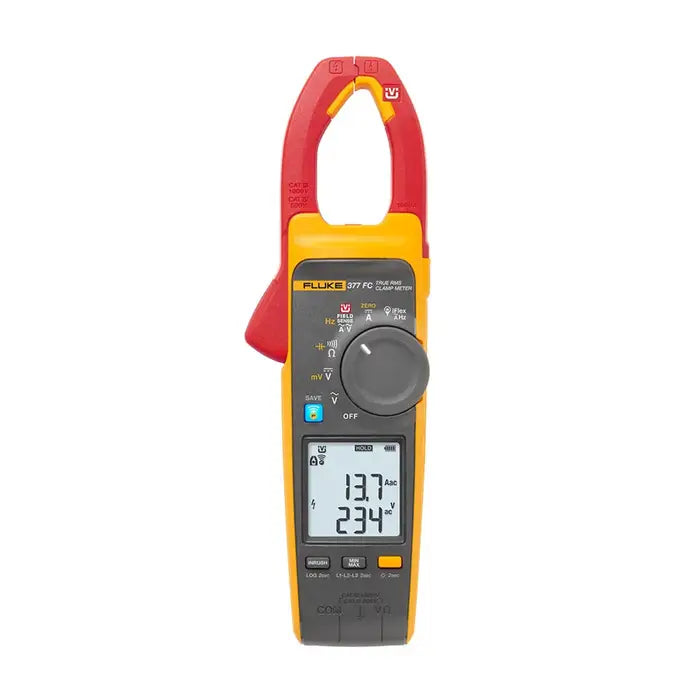

Fluke 377 FC Non-Contact Voltage TRMS AC/DC Clamp Meter (377FC)
Regular price
2,500.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Fluke 377 FC is a True-RMS Non-Contact Voltage Clamp Meter that utilizes FieldSense™ technology, allowing users to measure voltage and current without direct contact with live conductors. This feature enhances safety and efficiency during electrical testing.
Features
- FieldSense™ Technology: Enables safe and accurate voltage and current measurements without touching live wires.
- High Current Measurement: Capable of measuring AC current up to 2500 A using the included iFlex flexible current probe.
- Three-Phase Testing: Simplifies three-phase voltage and current tests in just three steps, providing phase-to-ground and phase-to-phase values.
- Fluke Connect Compatibility: Allows for remote logging, trending, and monitoring of measurements via the Fluke Connect app, facilitating data sharing and analysis.
- Visual Continuity: The display turns green when a stable measurement is detected, making it easier to identify continuity in noisy environments.
Specifications
Specification | Details |
---|---|
AC Current (Jaw) | 999.9 A |
AC Current (Flexible Probe) | 2500 A |
DC Current | 999.9 A |
AC Voltage (FieldSense) | 1000 V |
AC Voltage (Test Leads) | 600 V / 1000 V |
DC Voltage | 600 V / 1000 V |
Resistance | 60 kΩ, 6000 Ω, 600 Ω |
Capacitance | 1000 μF |
Operating Temperature | -10 to 50 °C |
Safety Rating | CAT III 1000 V / CAT IV 600 V |
Weight | 463 g |
