Fluke 707 Loop Calibrator
Regular price
4,600.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

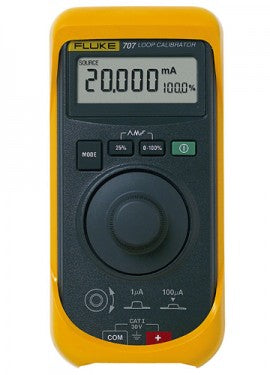

The Fluke 707 Loop Calibrator is a high-performance tool designed for the calibration, repair, and maintenance of current loops. It allows users to accurately set and control current in a loop, making it ideal for calibrating actuators and indicators.
Features
- Quick Click Knob Interface: The "Quick Click" knob allows for fast adjustments, changing values by 0.001 mA with each click, and 0.100 mA with a press and click.
- HART Mode Compatibility: The calibrator connects a 250-ohm resistor with a 24 V loop, making it compatible with HART communicators.
- Current Measurement and Sourcing: Measures current from 0 to 24 mA and sources current in ranges of 0 to 20 mA or 4 to 20 mA.
- Voltage Measurement: Capable of measuring DC voltage from 0 to 28 V with high accuracy.
- Durable Design: Built to withstand harsh environments with a temperature range of -10 to 55°C and humidity tolerance.
Specifications
| Specification | Details |
|---|---|
| Current Measurement Range | 0 to 24 mA, Resolution: 0.001 mA |
| Current Sourcing Range | 0 to 20 mA or 4 to 20 mA |
| Voltage Measurement Range | 0 to 28 V DC, Resolution: 1 mV |
| Accuracy | 0.015% Rdg + 2 LSD |
| Operating Temperature | -10 to 55°C |
| Humidity | 0 to 90% (0 to 35°C); 0 to 70% (35 to 55°C) |
| Size | 152 x 70 x 41 mm |
| Weight | 224 g (340 g including holster) |
| Power Supply | One 9V battery (Alkaline) |
