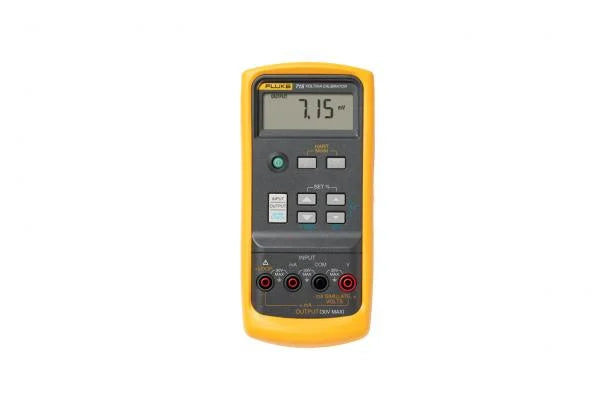

Fluke 715 Volt/mA Loop Calibrator
Regular price
6,500.00 SR
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Fluke 715 Volt mA Calibrator delivers outstanding performance, durability, and reliability in a compact, lightweight tool. Offered in the rugged Fluke 80 Series digital multimeter package, the calibrator measures loop current as well as voltage output. It sources voltage to 200 mV or 20 V, measures loop current (0-20 mA, 4-20 mA) signals with 0 .01 % accuracy, and 1 µA resolution, and measures voltage output process signals from PLCs and transmitters. It can source or simulate 4-20 mA loop current and provides a 24 V loop supply with simultaneous current measurement.
Features
- Compact mA calibrator for measuring 0-20 mA or 4-20 mA signals
- High accuracy—0.01% and 1 µA resolution
- Measures voltage output process signals from PLCs and transmitters
- Sources or simulates 4-20 mA loop current
- Sources voltage to 100 mV or 10 V
Specifications
| Specification | Value |
|---|---|
| Functional Specifications | |
| Measure / Source mV | |
| Range | 0 to 200 mV |
| Resolution | 0.01 mV |
| Accuracy | 0.015% + 2 counts |
| Measure / Source V | |
| Range | 0 to 20 V |
| Resolution | 0.001 V |
| Accuracy | 0.01% + 2 counts |
| Measure / Source/ Simulate mA (% of span) | |
| Range | 0 to 24 mA (-25% to 125%) |
| Resolution | 0.001 mA |
| Accuracy | 0.01% + 2 counts |
| Sink (simulate transmitter) display | mA or % of span |
| Specifications | |
| Loop Power | |
| Range | 24 V DC |
| Accuracy | ±10% |
| Drive | 20 mA into 1000 Ω for battery > 6.8 V; 700 Ω for battery 5.8 to 6.8 V |
| Display | Clear 5 digit LCD |
| Environmental Specifications | |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -40°C to 60°C |
| Humidity (without condensation) | 95% (10°C to 30°C) |
| 75% (30°C to 40°C) | |
| 45% (40°C to 50°C) | |
| 35% (50°C to 55°C) | |
| Operating Altitude | 3,000 m max |
| Safety Specifications | |
| Safety | CSA C22.2 No. 1010.1:1992 |
| Mechanical and General Specifications | |
| Size (L x W x D) | 187 x 87 x 32 mm (7.93 x 3.86 x 2.06 in) |
| Weight | Approx. 330 g (21 oz) |
| Warranty | 3 years |
| Shock and Vibration | Random, 2 G, 5-500 Hz |
| 1 m drop test | |
| Battery Type | Single 9 V battery (ANSI/NEDA 1604A or IEC 6LR619V alkaline) |
