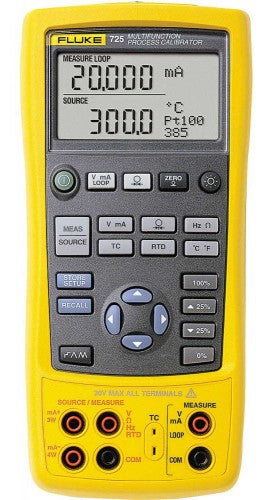

Fluke 725 Multifunction Process Calibrator

Out of stock
SKU: 725
Regular price 18,500.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links


The Fluke 725 Multifunction Process Calibrator is a powerful and versatile tool designed for sourcing and measuring a wide variety of process parameters. It is particularly useful for testing process devices, making it an essential instrument for technicians and engineers in various industrial applications.

Features
  • Measurement Capabilities: The calibrator can measure and source mA, volts, RTDs, thermocouples, frequency, ohms, and pressure.
  • User-Friendly Interface: It features a large backlit display and an easy-to-use push-button interface, allowing for quick navigation and operation.
  • Durability: The device is designed to be dust and splash resistant, ensuring reliability in rugged environments.
  • Storage and Recall: It can store and recall frequently used calibration setups, enhancing efficiency during testing.
  • Battery Access: The removable battery door allows for quick battery changes without breaking the calibration seal.
Specifications
Specification Details
Voltage Measurement Accuracy 30 V: 0.02% + 2 counts
Current Measurement Accuracy 24 mA: 0.02% + 2 counts
Resistance Measurement Range 0 to 3200 Ω
Frequency Measurement Range 2 to 10 kHz
Operating Temperature -10°C to 55°C
Weight 1.43 lbs (0.65 kg)
Dimensions 5.1 x 9.3 x 2.4 inches
