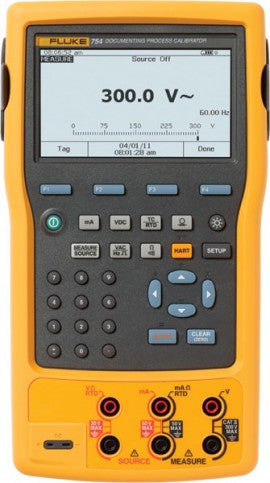

Fluke 754 Process Calibrator

Out of stock
SKU: 754
Regular price 47,000.00 SR

Use this text to encourage communication or promote sharing on social networks.

You can also add links


The Fluke 754 Documenting Process Calibrator is a versatile tool designed for calibrating, maintaining, and troubleshooting HART smart transmitters and other instrumentation. It combines multiple functions into one rugged, portable device, making it ideal for professionals in various industries.

Features
  • Multi-Functionality: Capable of measuring and sourcing pressure, temperature, and electrical signals, including AC/DC voltage, mA loop, thermocouples, RTDs, frequency, and resistance.
  • HART Communication: Directly communicates with HART smart digital transmitters, simplifying calibration tasks and reducing the need for multiple tools.
  • Documentation Capabilities: Automates calibration procedures and captures data, helping users meet regulatory standards such as ISO 9000, FDA, EPA, and OSHA.
  • User-Friendly Interface: Features a bright dual display for simultaneous reading of sourced and measured parameters, along with a rechargeable Li-Ion battery for up to 10 hours of uninterrupted use.
  • Compatibility: Works with various calibration management software, allowing for seamless integration into existing systems.
Specifications
Specification Details
AC/DC Voltage Up to 300 V, Accuracy: 0.02% + 0.005 V
Current (DC) Up to 110 mA, Accuracy: 0.01% + 5 µA
Resistance Up to 10 kΩ, Accuracy: 0.1% + 10 Ω
Frequency Up to 50 kHz, Accuracy: 0.05 Hz
Operating Temperature -10 °C to +50 °C
Dimensions 136 x 245 x 63 mm
Weight 1.23 kg
Battery Life > 8 hours typical
